Camaro V8-305 5.0L VIN G 4-bbl HP
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel
>>
With Gauges Cluster
With Gauges Cluster

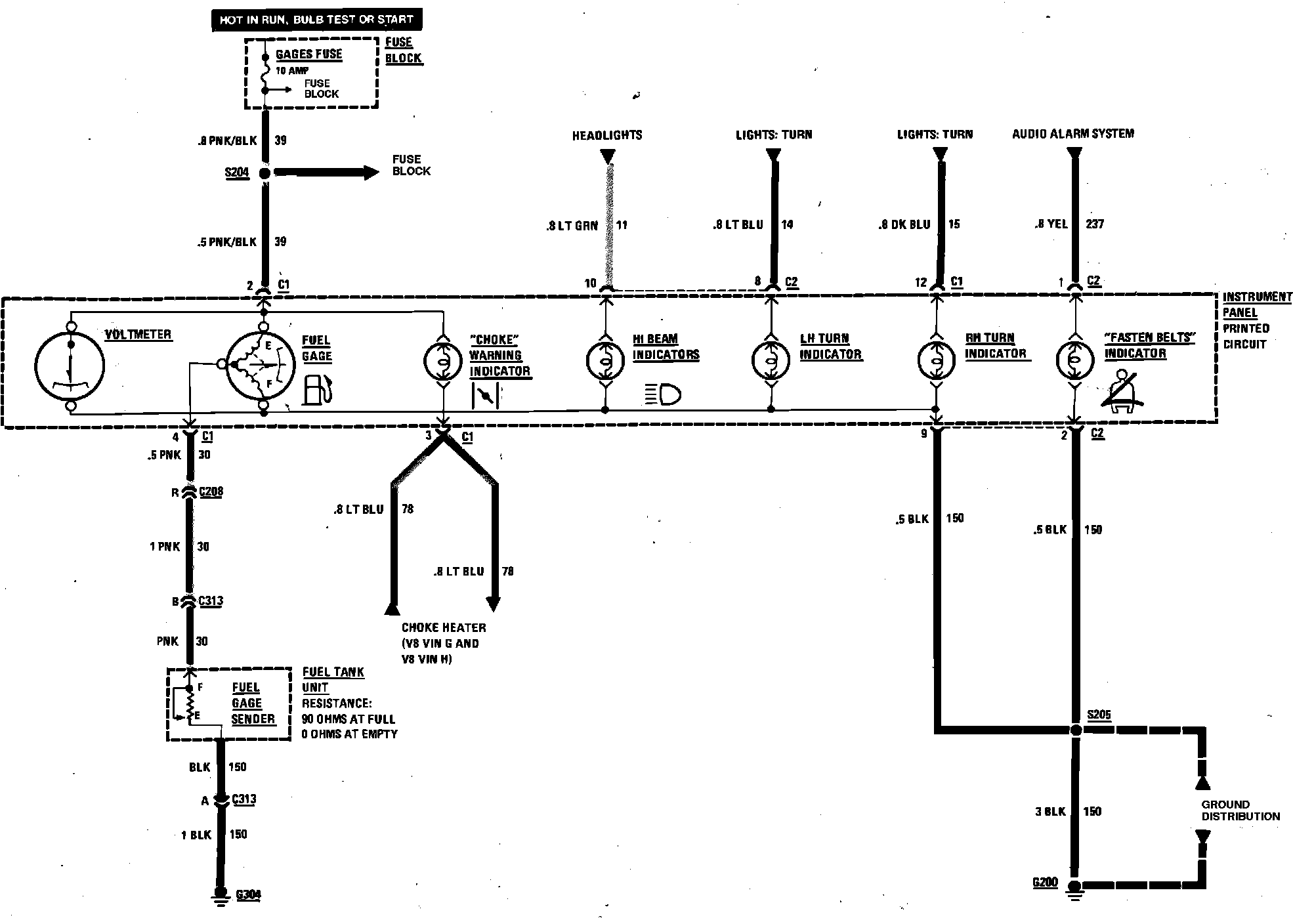

Instrument Panel Wiring Circuit (Part 1 of 2). W/Gauges Cluster:
Instrument Panel Wiring Circuit (Part 2 of 2). W/Gauges Cluster:
