Brake Warning Indicator
>>
Exc. Berlinetta
Exc. Berlinetta

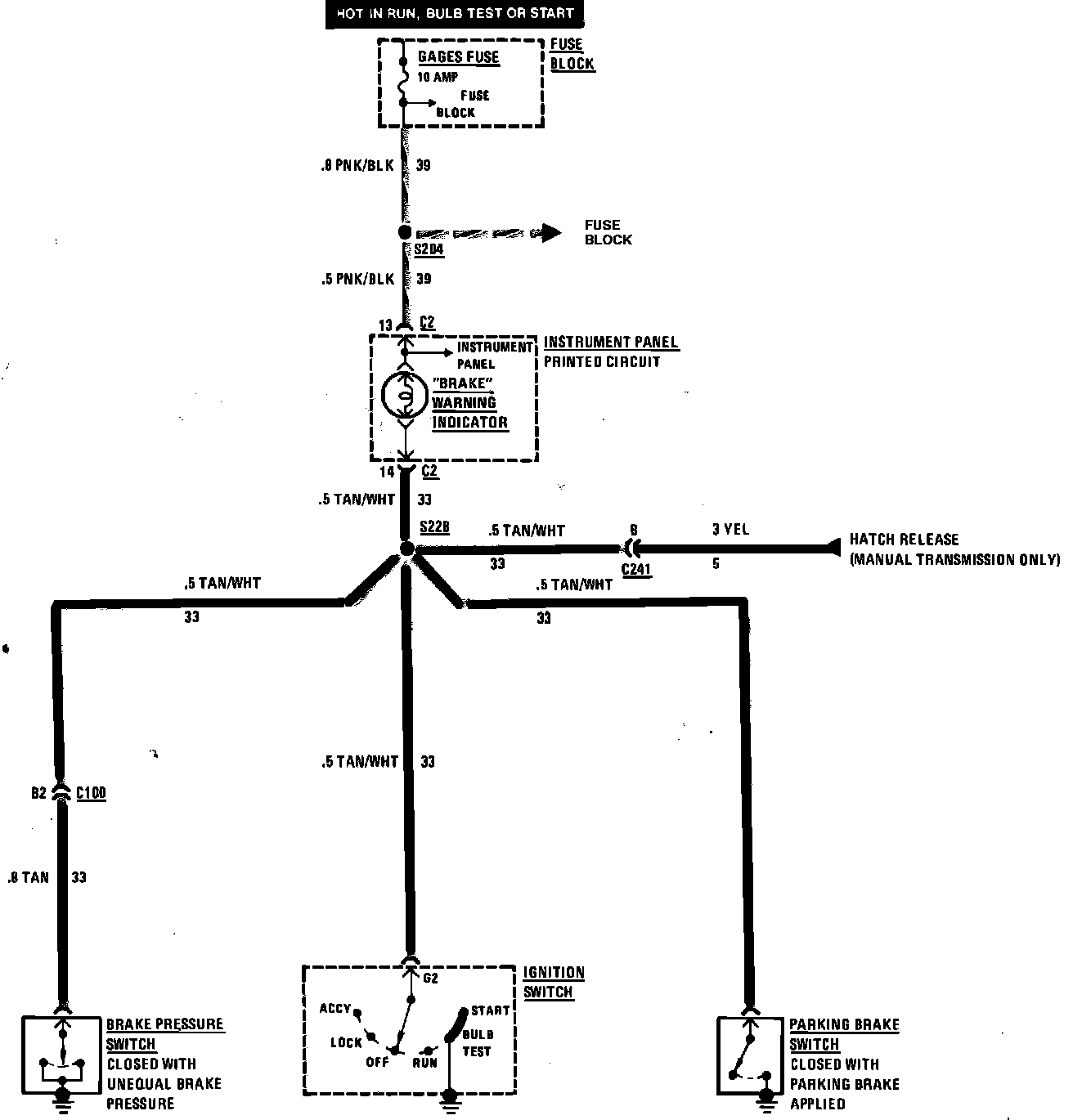

Brake Warning System Wiring Circuit. Exc. Berlinetta:
