Malfunction Indicator Lamp

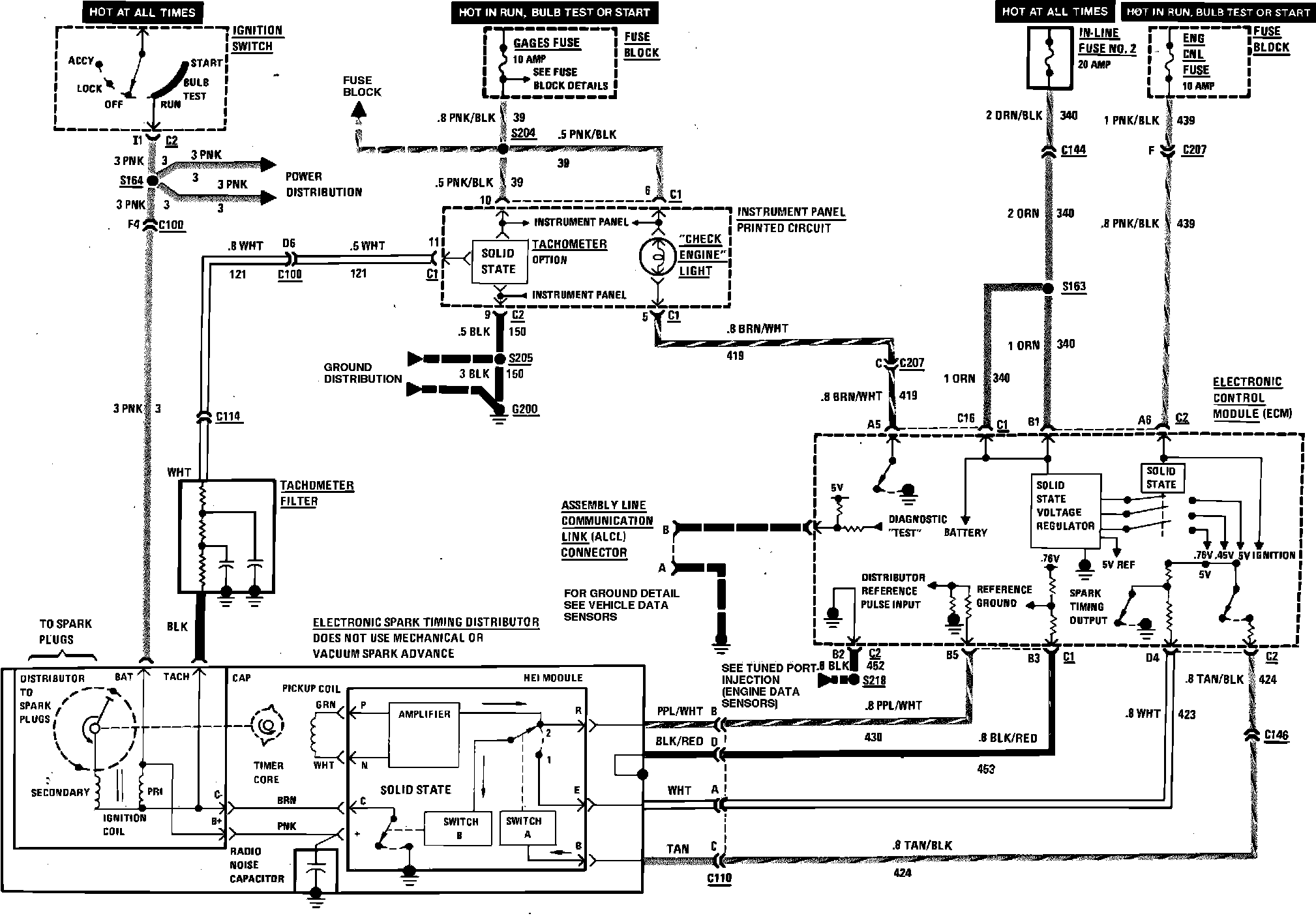

Tuned Port Injection Wiring Circuit (Check Engine Lamp, Ignition & Tachometer) (VIN F):
