Vacuum and Vapor Hose Diagrams

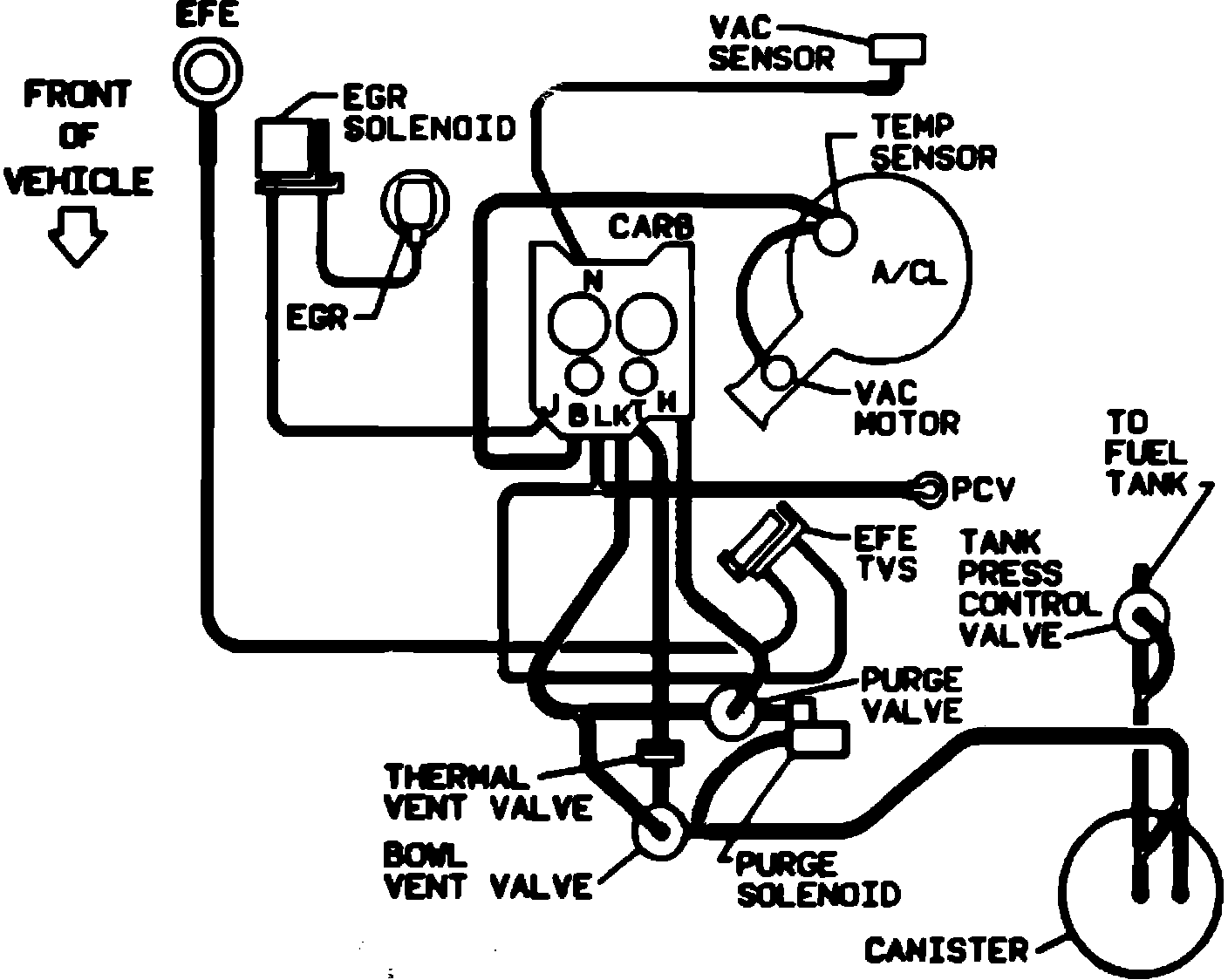

Fig. 30 Vacuum Hose Routing. Camaro & Firebird w/V8-305 (5.0L) 4 Bbl. (VIN G,H):
