Emission Control Systems: Locations

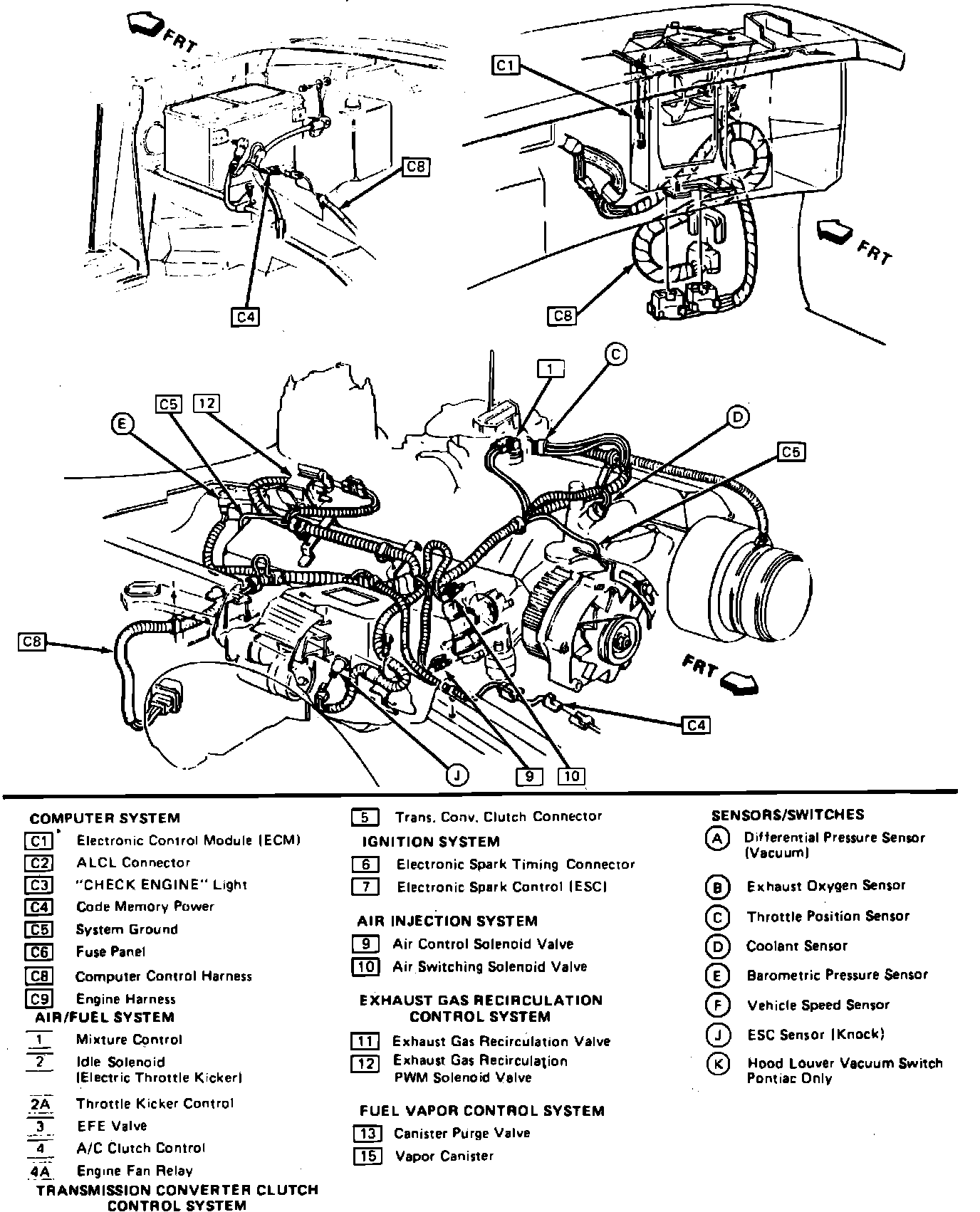

Fig. 41a Emission Component Location. 1985-86 Camaro W/V8-305/5.0L, 4 Bbl. (Part 1 of 2):



Fig. 41b Emission Component Location. 1985-86 Camaro W/V8-305/5.0L, 4 Bbl. (Part 2 of 2):
