With Gauges Cluster

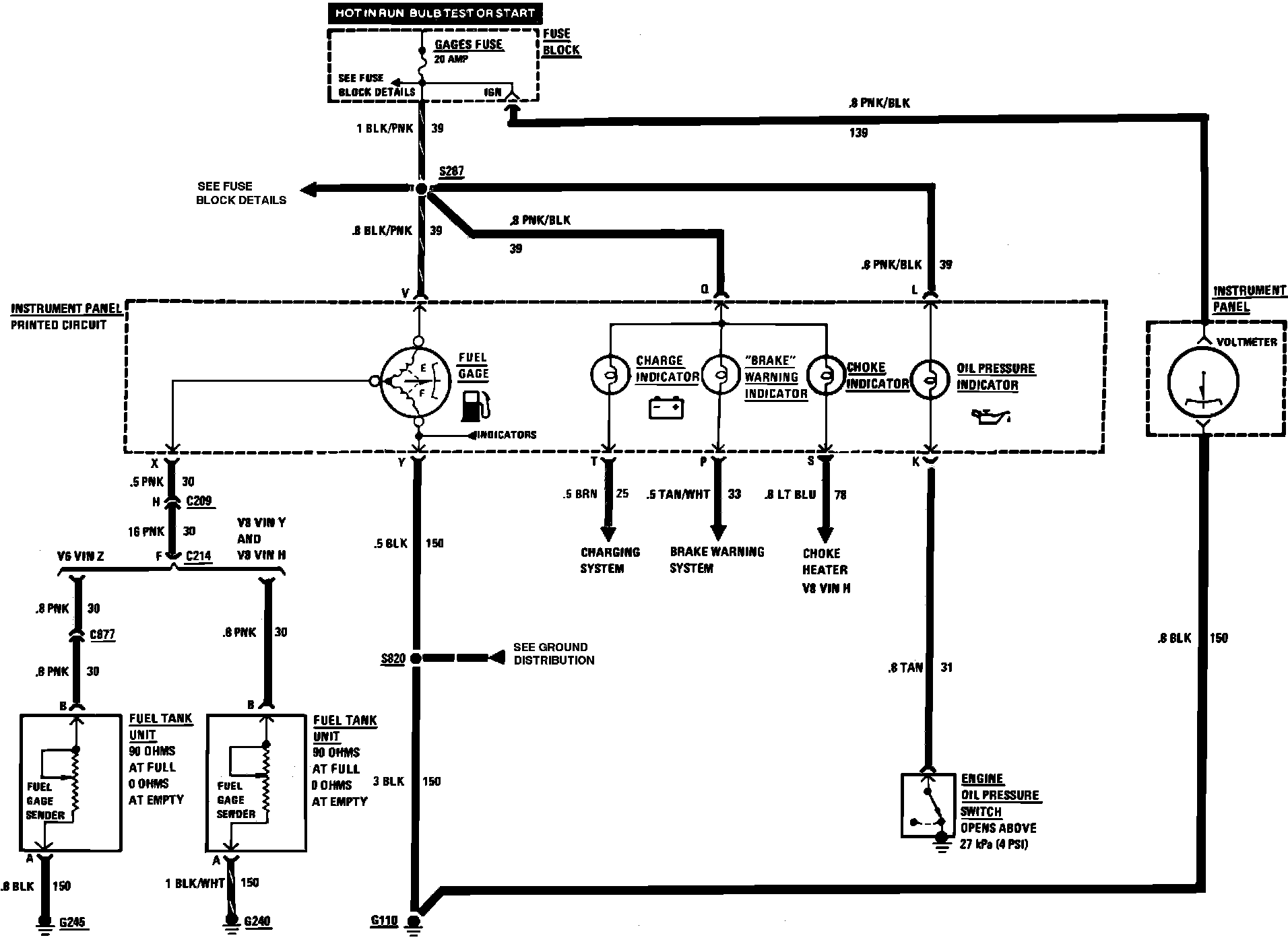

Instrument Panel Wiring Circuit (With Gauge Cluster):

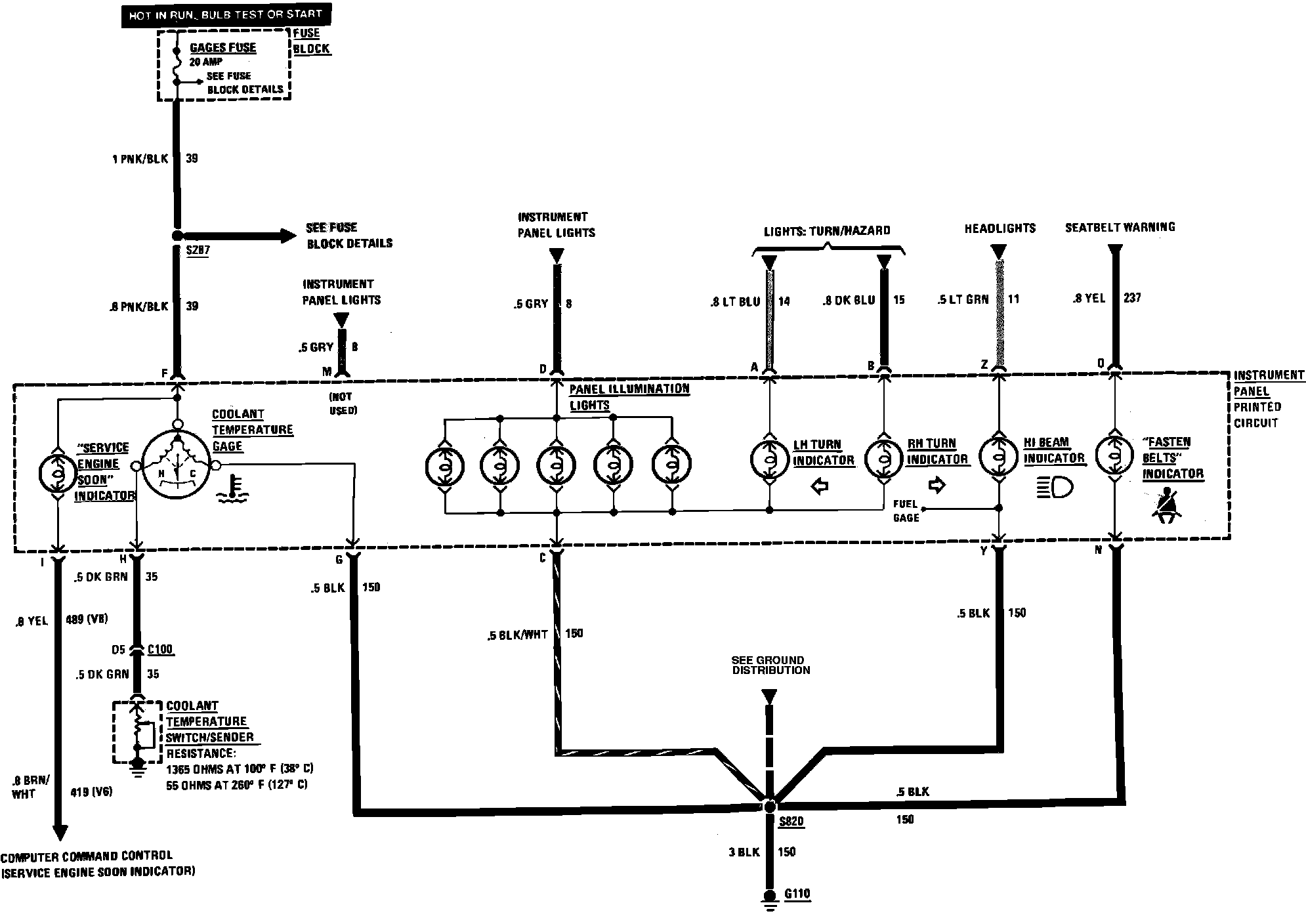

Instrument Panel Wiring Circuit (With Gauge Cluster):
