Brake Warning Indicator
>>
Less Power Master Brake System
Less Power Master Brake System

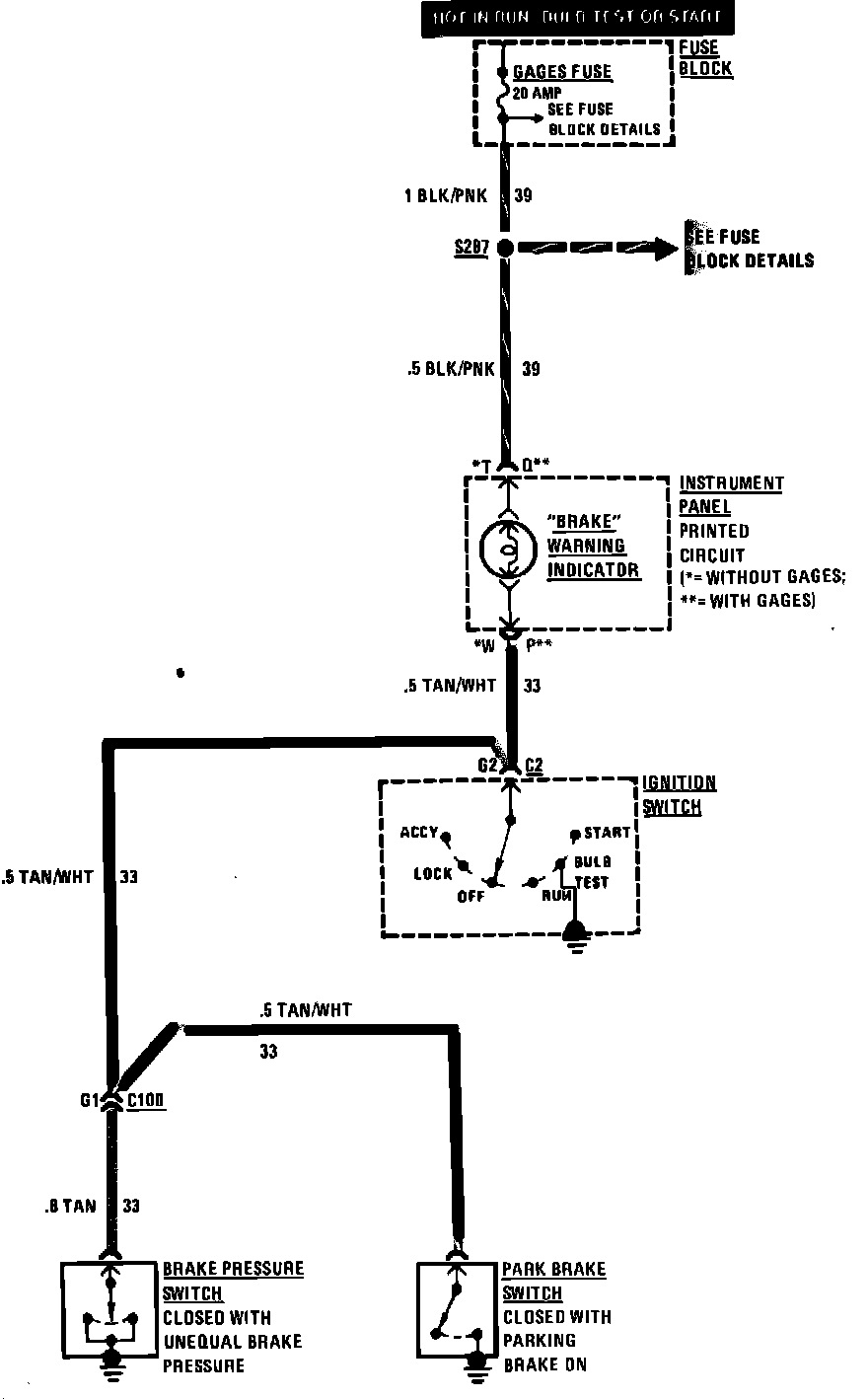

Brake Warning System Wiring Circuit (Less Power Master Brake System):
