Home >> Chevrolet >> 1986 >> Caprice Wagon V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Exc. Wagon

Exc. Wagon

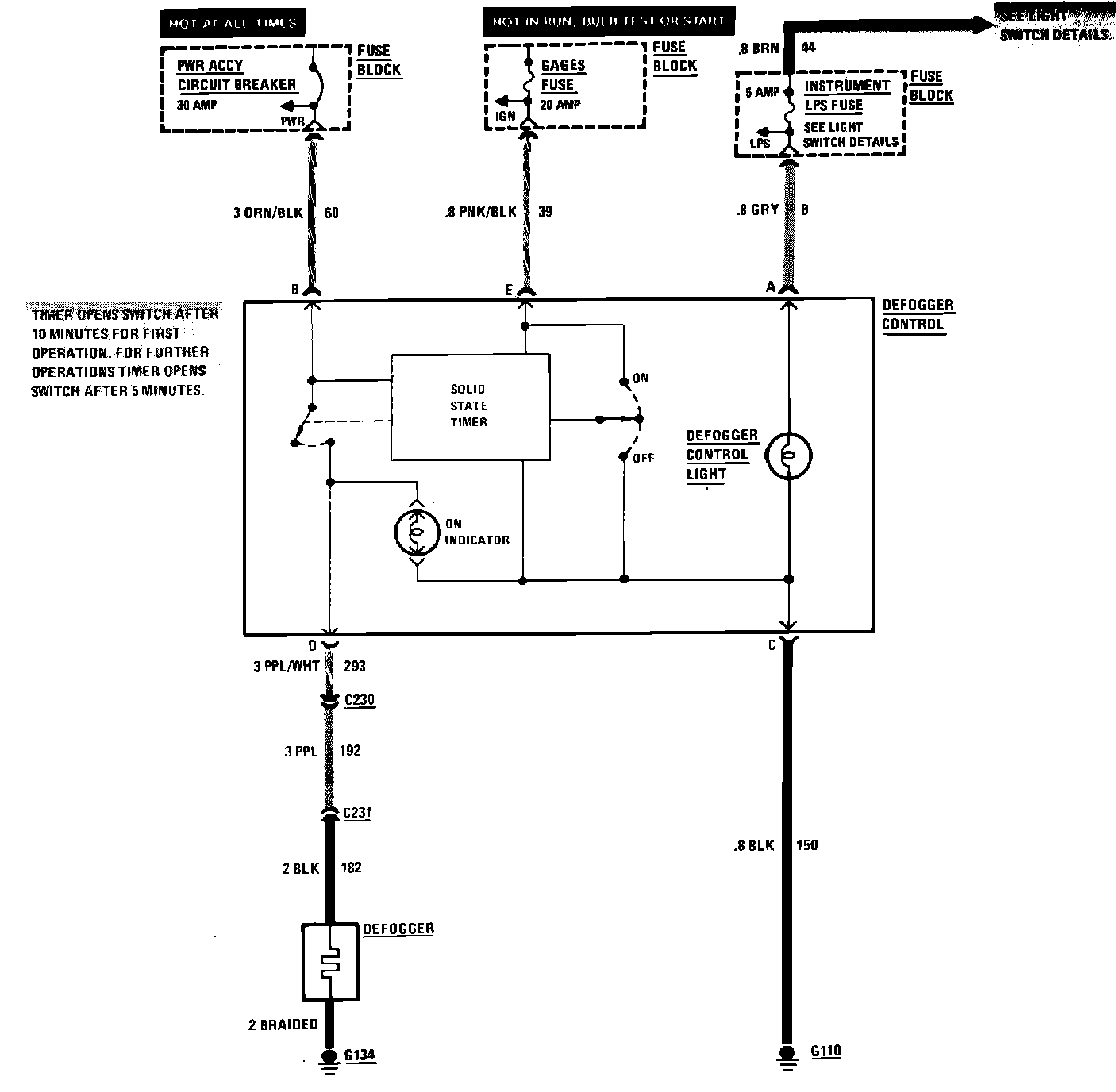

Rear Window Defogger Wiring Circuit (Exc. Wagon):
