Home >> Chevrolet >> 1986 >> Caprice Wagon V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram

System Diagram

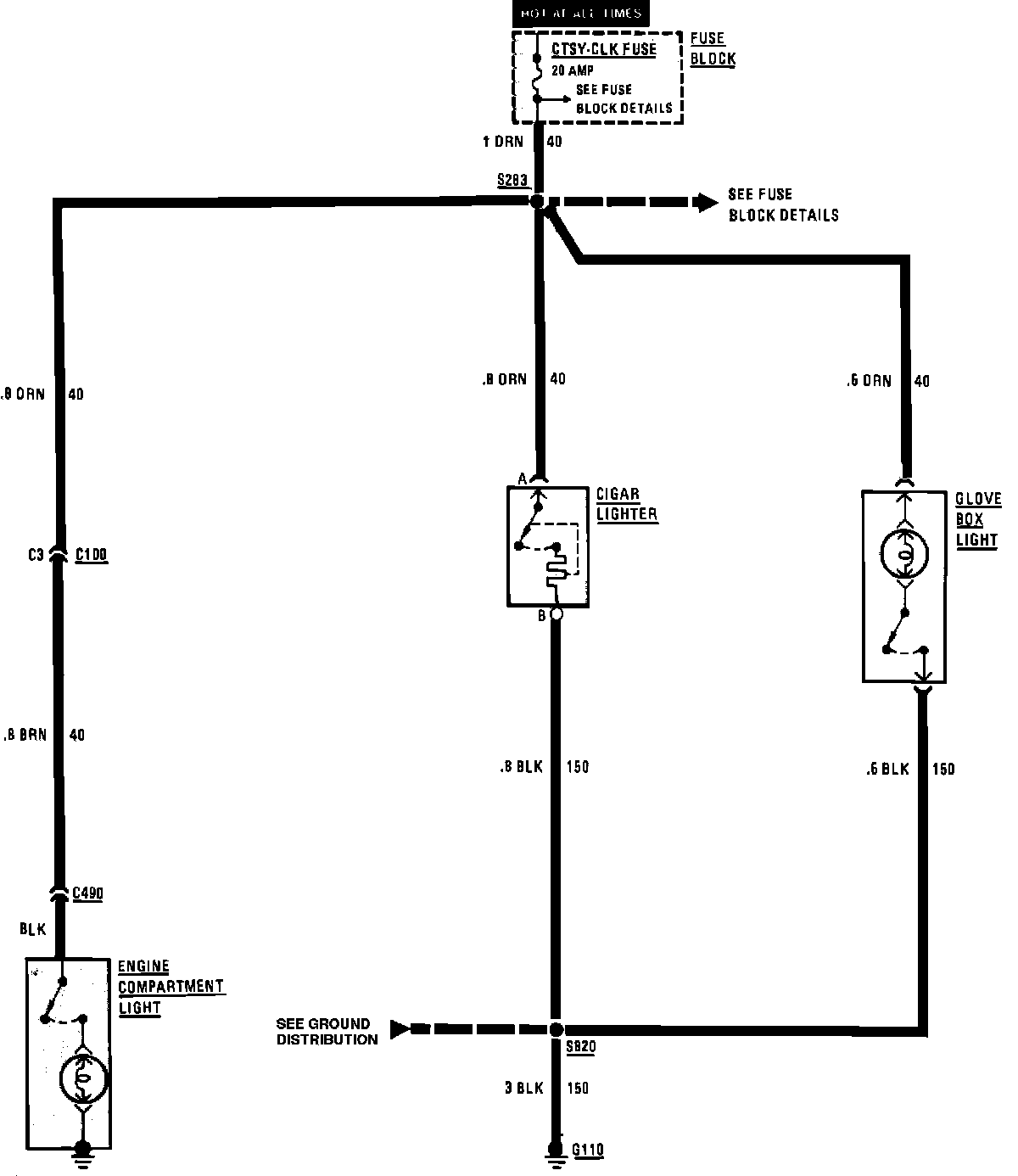

Cigar Lighter, Engine Compartment Lamp & Glove Box Lamp Wiring Circuit:
