Oil Pressure Sender/Switch

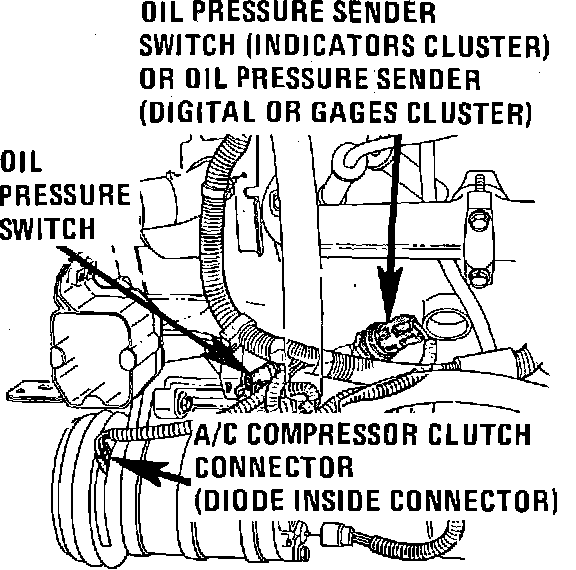

Oil Pressure Sender/Switch
LH Front Of Engine.:
RH Rear Of Engine Near Oil Filter
Applicable to: 1986 Cavalier With V6-173/2.8L, VIN W
