Instrument Panel, Gauges and Warning Indicators
Instrument Panel, Gauges and Warning Indicators
Instrument Cluster Connector C2:

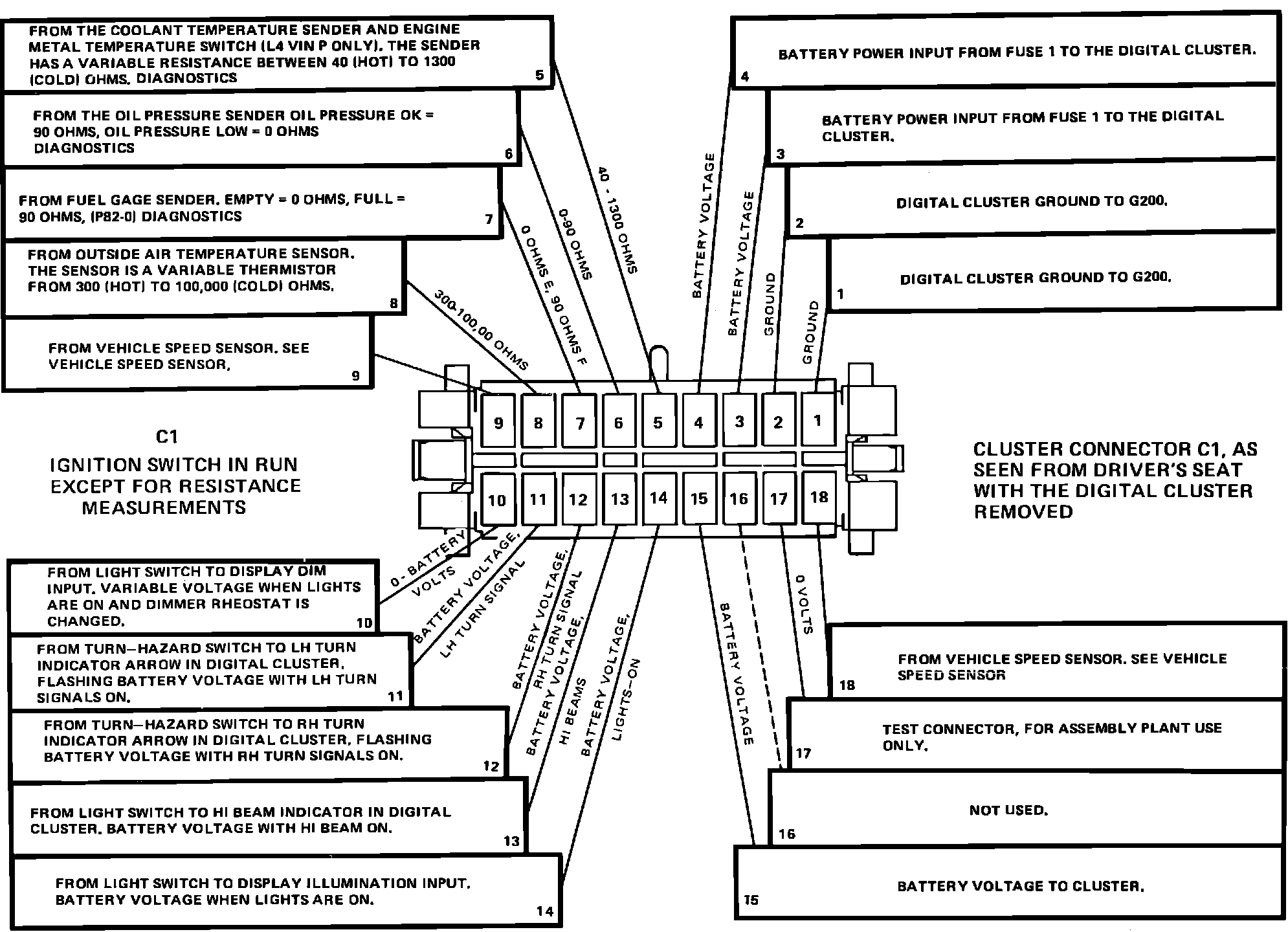

Connector C1 Pinout Test:
