Eurosport With Indicators
Eurosport With Indicators

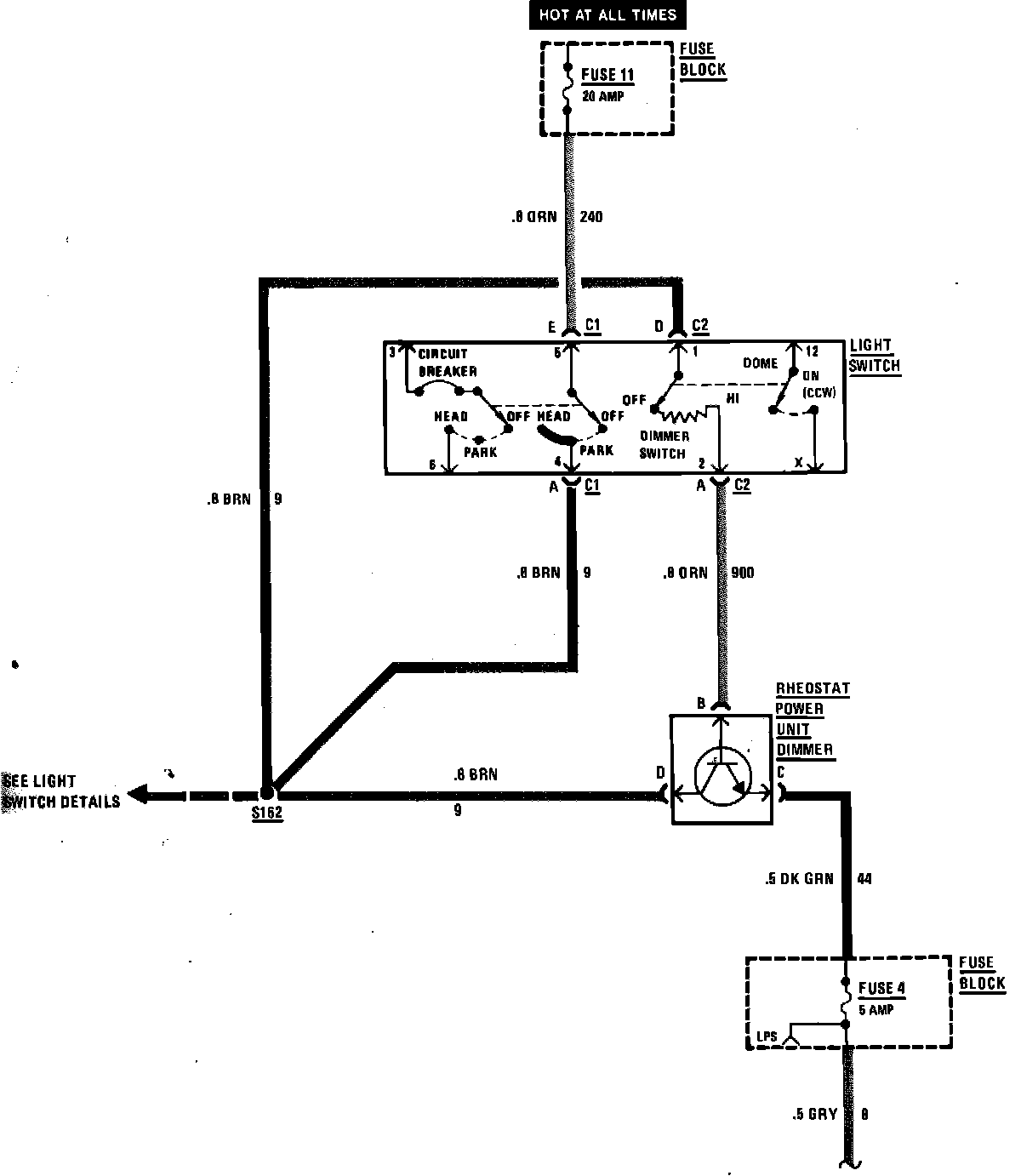

Instrument Panel Illumination Wiring Circuit (Part 1 Of 2) Eurosport W/Indicators:

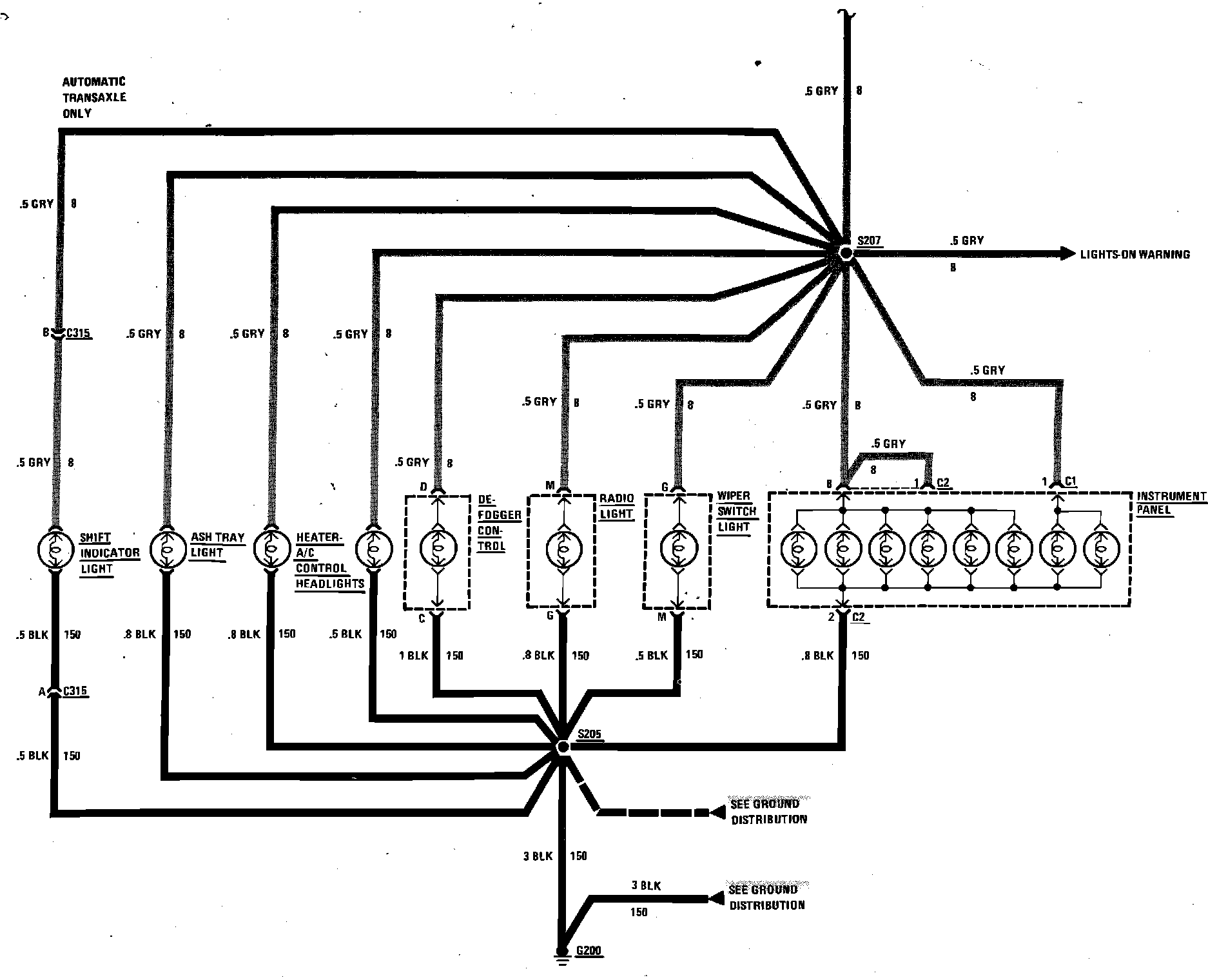

Instrument Panel Illumination Wiring Circuit (Part 2 Of 2) Eurosport W/Indicators:
