Digital Dash Replacement

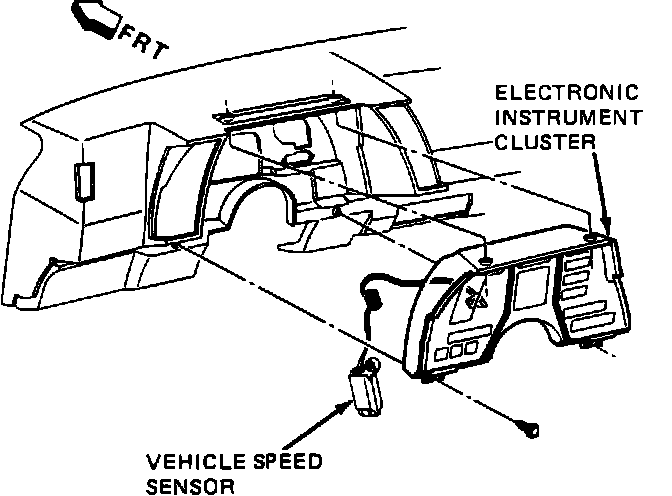

Instrument Cluster Removal:

NOTE: The information stored in the total odometer is retained in a removable "non-volatile memory" which MUST stay with the car.

1. Disconnect battery ground cable
2. Remove steering column trim cover.
3. Remove 2 screws at cluster lower edge and 2 screws at cluster upper bracket attachment to I/P.
4. Pull cluster rearward, disconnecting all electrical connectors.
5. Remove cluster.
