Idle Speed Control & Vehicle Data Sensors

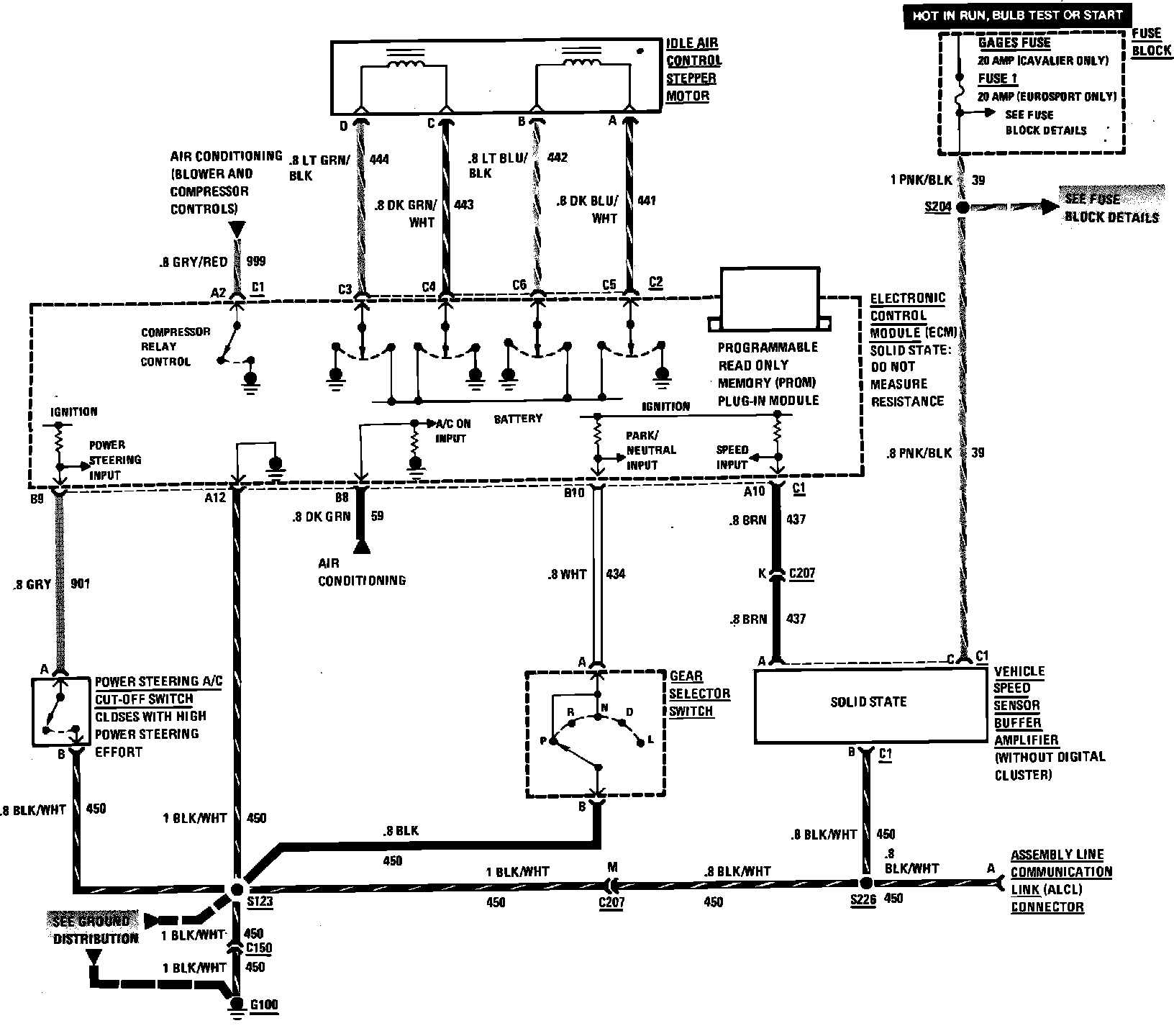

Multi-Port Fuel Injection Wiring Circuit (Idle Speed Control & Vehicle Data Sensors):
