Fuel Control, Idle Air Control (IAC) & Vehicle Speed Sensors

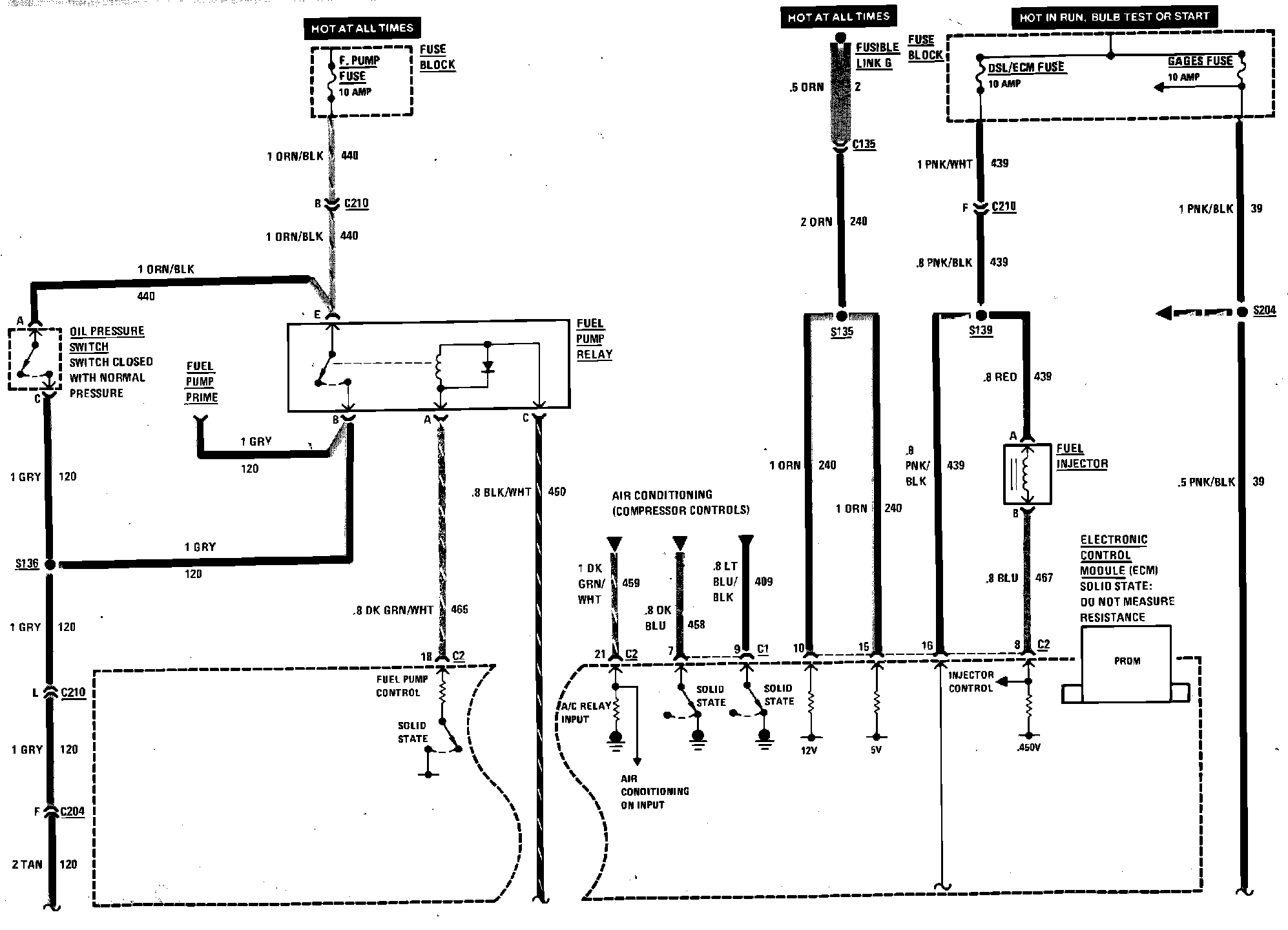

Electronic Fuel Injection Wiring Circuit (Fuel Control, Idle Air Control & Vehicle Speed Sensors, Part 1 Of 2):

Electronic Fuel Injection Wiring Circuit (Fuel Control, Idle Air Control & Vehicle Speed Sensors, Part 2 Of 2):
