Chevrolet
>>
1986
>>
Celebrity V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radiator Cooling Fan Motor
>>
With A/C VIN X
With A/C VIN X

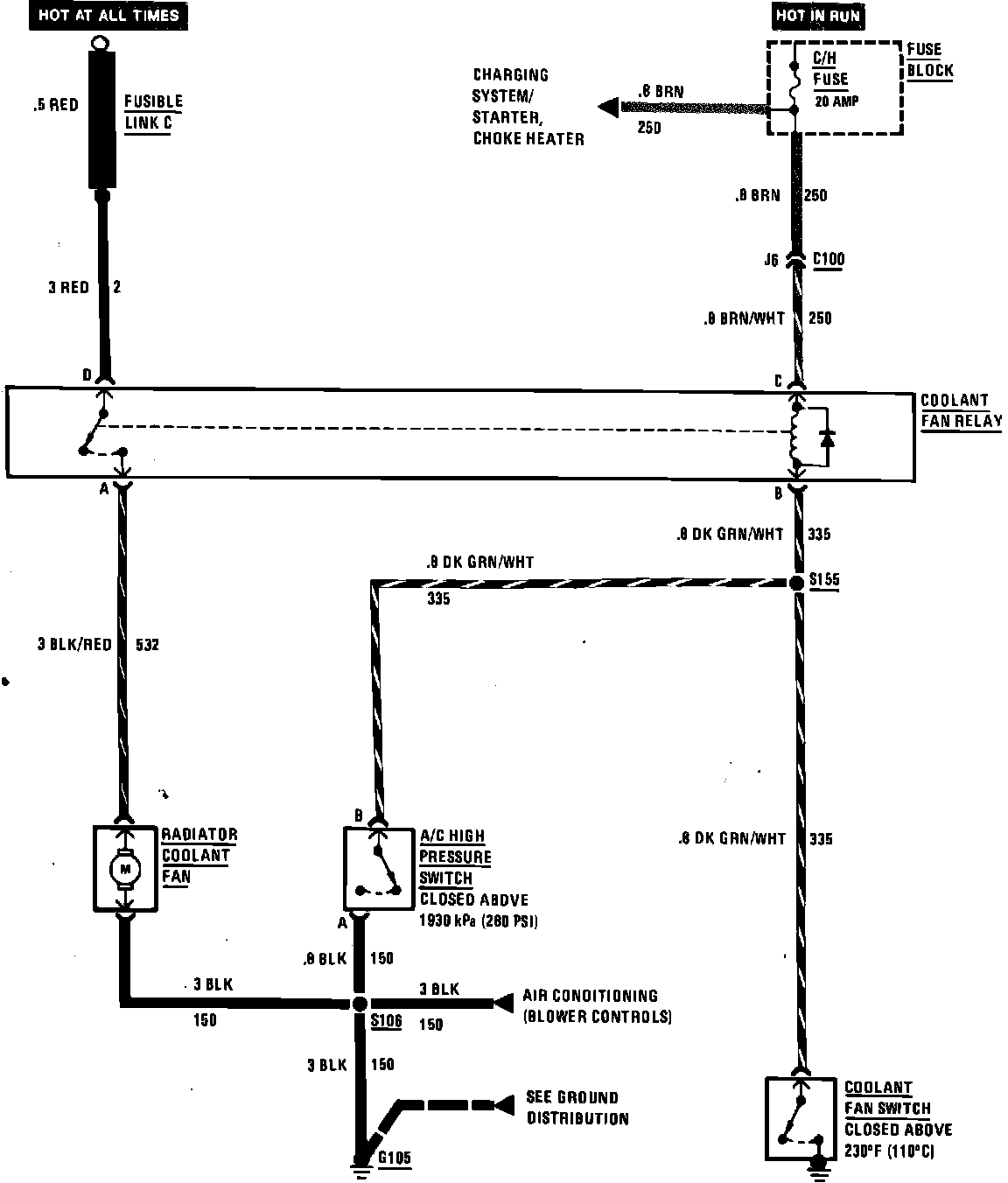

Engine Cooling Fan Wiring Circuit (With A/C) VIN X:
