Auto Transaxle, E.F.E. & Vehicle Speed Sensors
Auto Transaxle, E.F.E. & Vehicle Speed Sensors

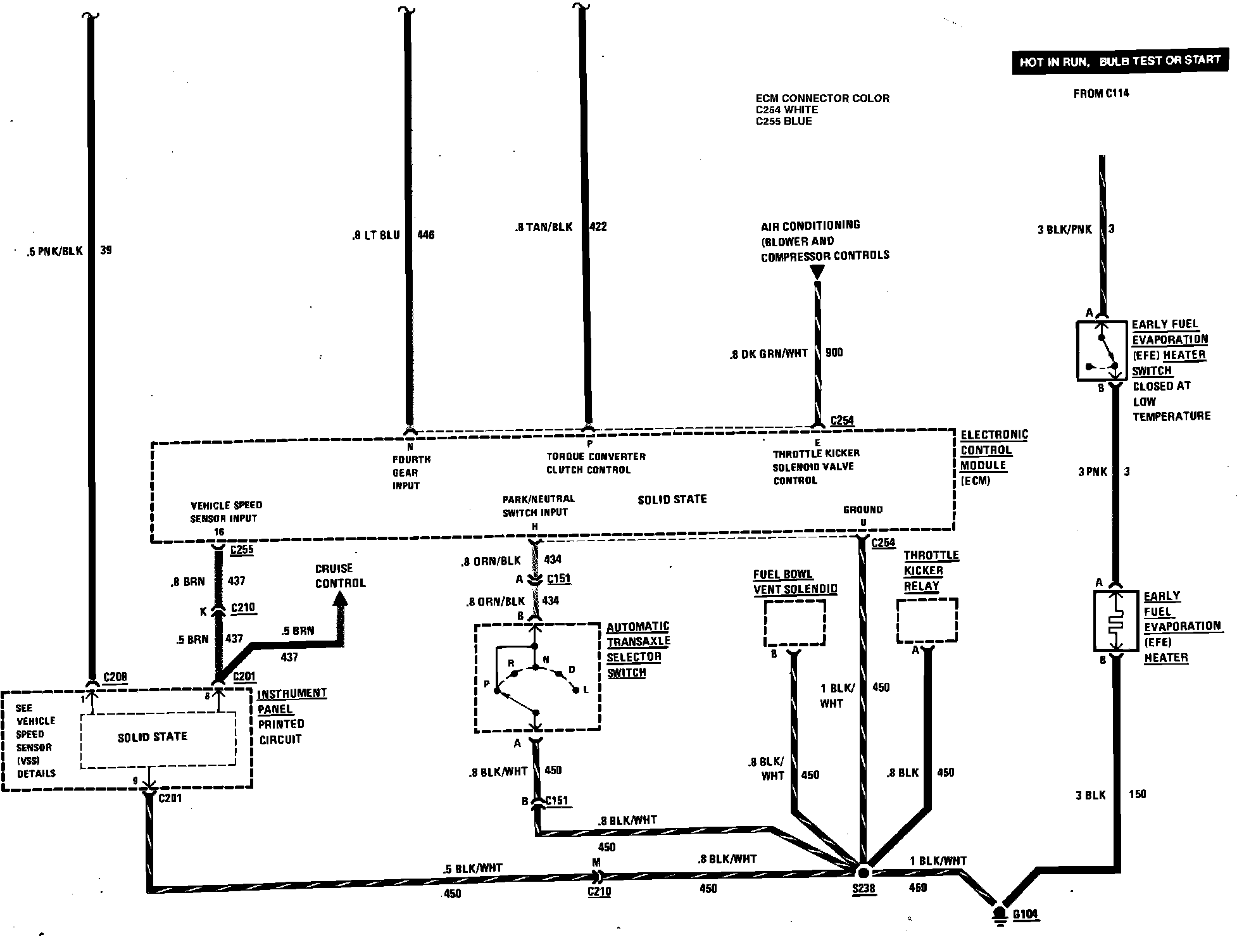

Automatic Transaxle, EFE And Vehicle Speed Sensors (Part 1 Of 2):
Automatic Transaxle, EFE And Vehicle Speed Sensors (Part 2 Of 2):
