Emission Control, Idle Air Control & Vehicle Data Sensors
Emission Control, Idle Air Control & Vehicle Data Sensors

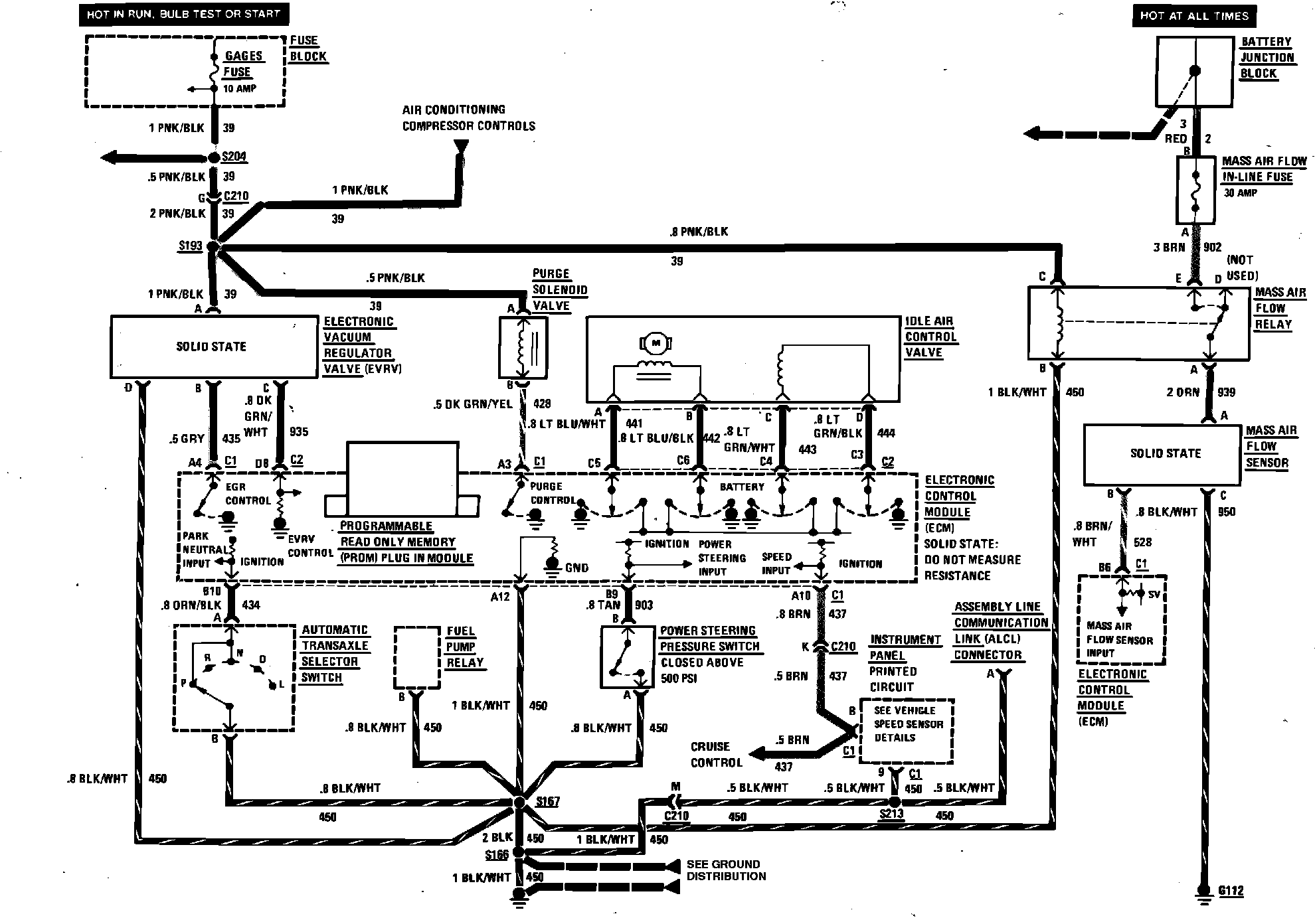

Multi-Point Fuel Injection Wiring Circuit (Emission Controls, Idle Air Control & Vehicle Data Sensors) VIN W:
