Engine Data Sensors, Cold Start & Torque Converter Clutch

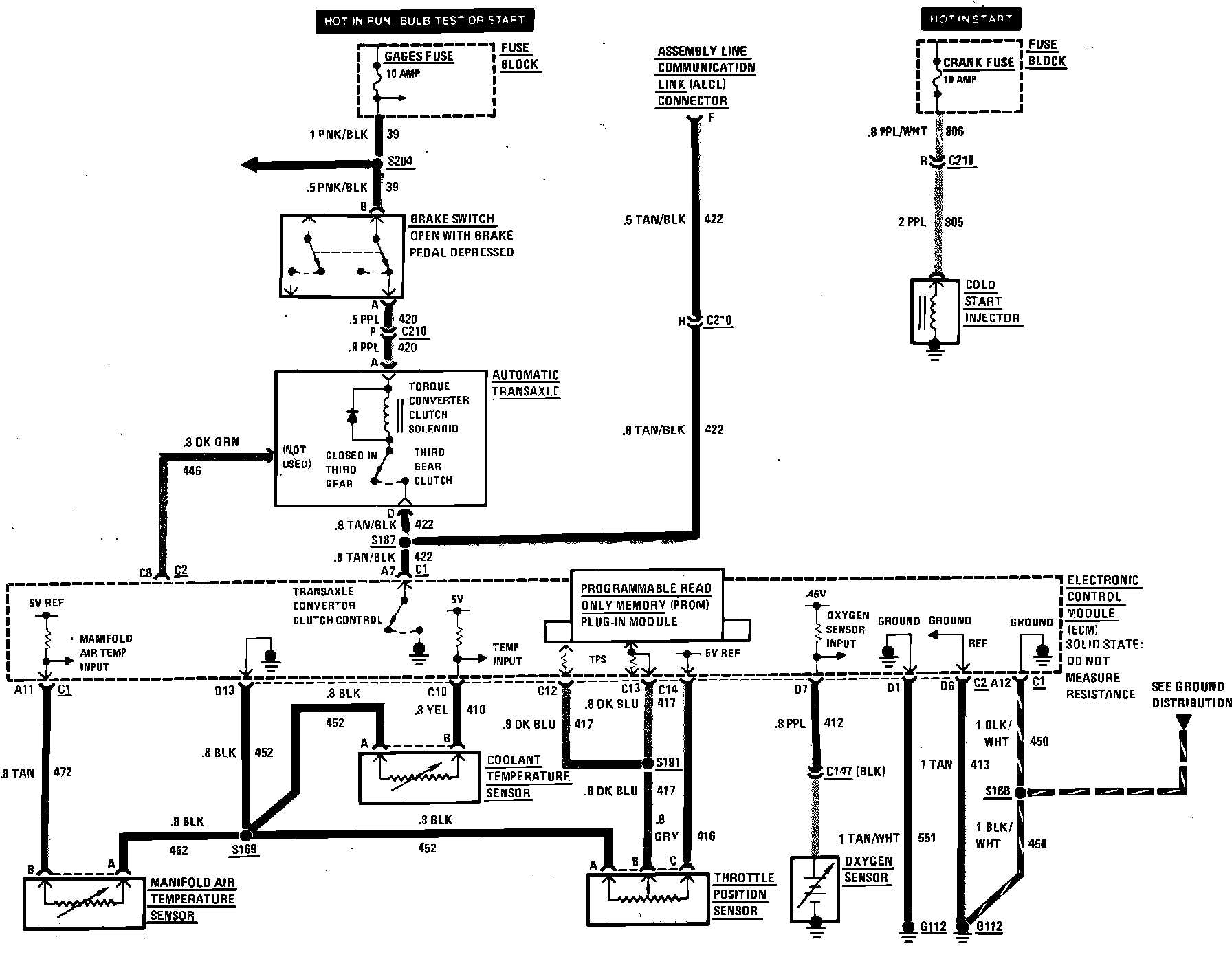

Cold Start System, Engine Data Sensors And Torque Converter Clutch:
