Turn Signals

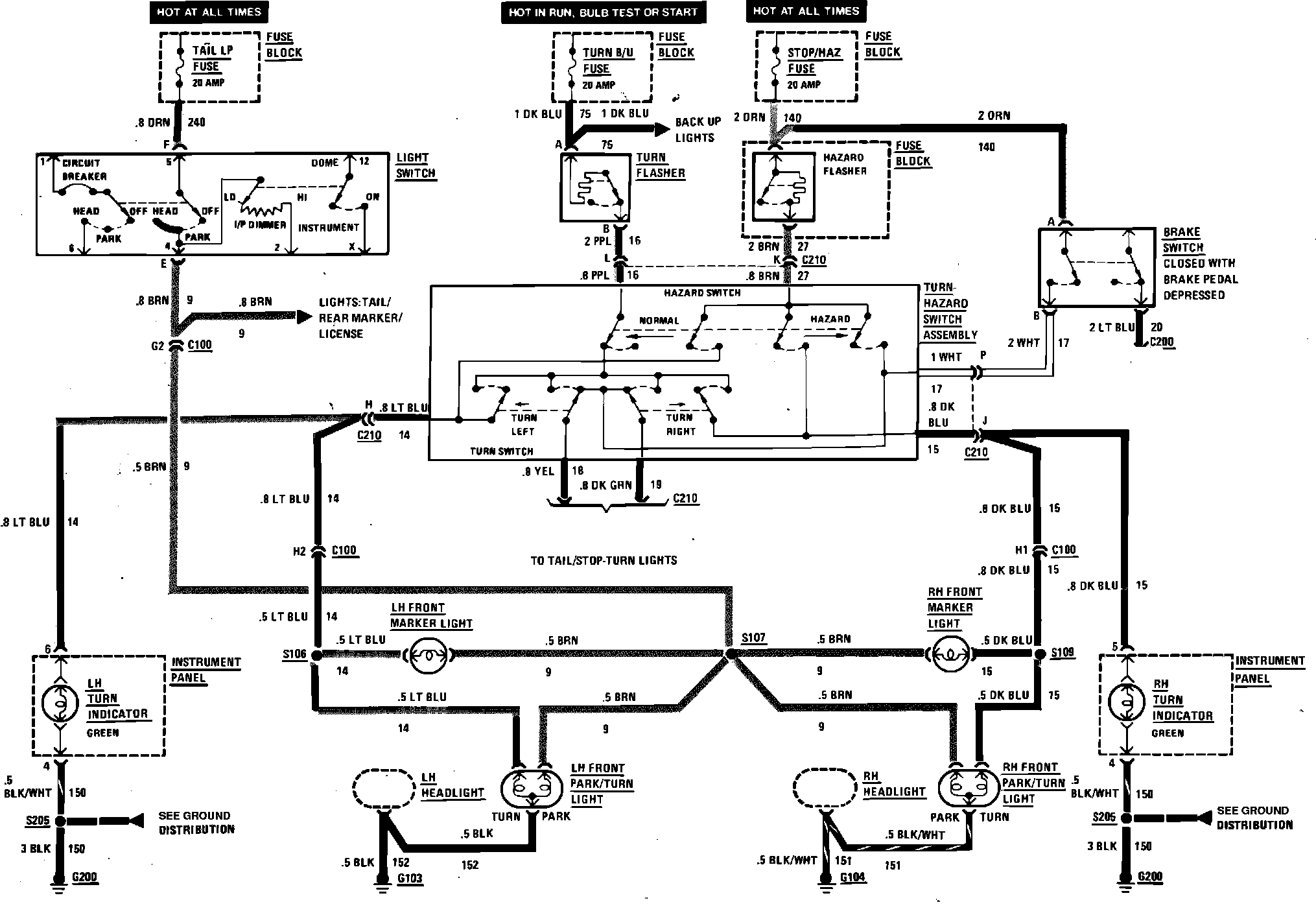

Hazard, Front Park, Front Marker, Stop & Turn Signal Lamps Wiring Circuit (Part 1 Of 2):

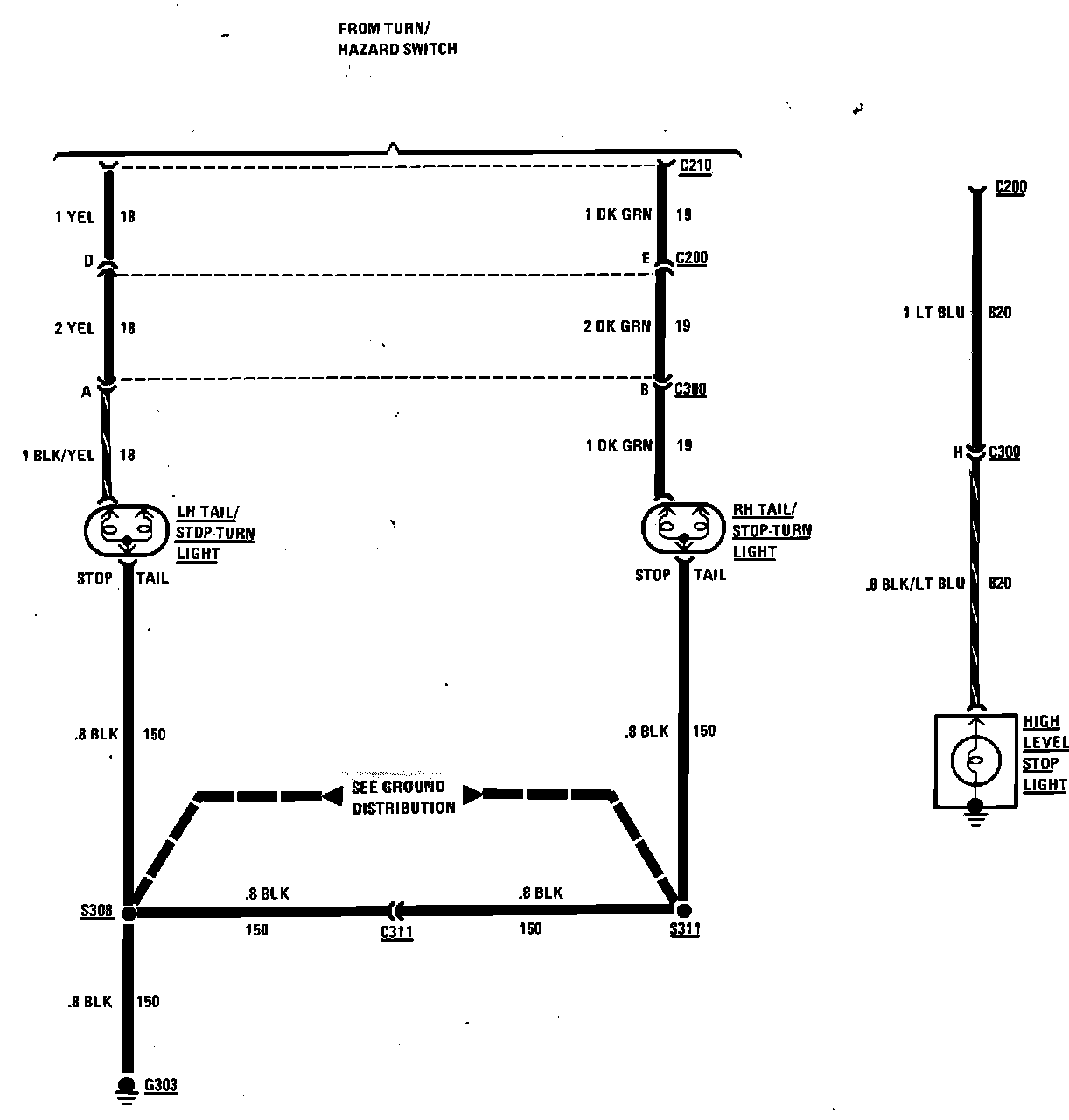

Hazard, Front Park, Front Marker, Stop & Turn Signal Lamps Wiring Circuit (Part 2 Of 2):
