Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
With M/T & A/C
With M/T & A/C

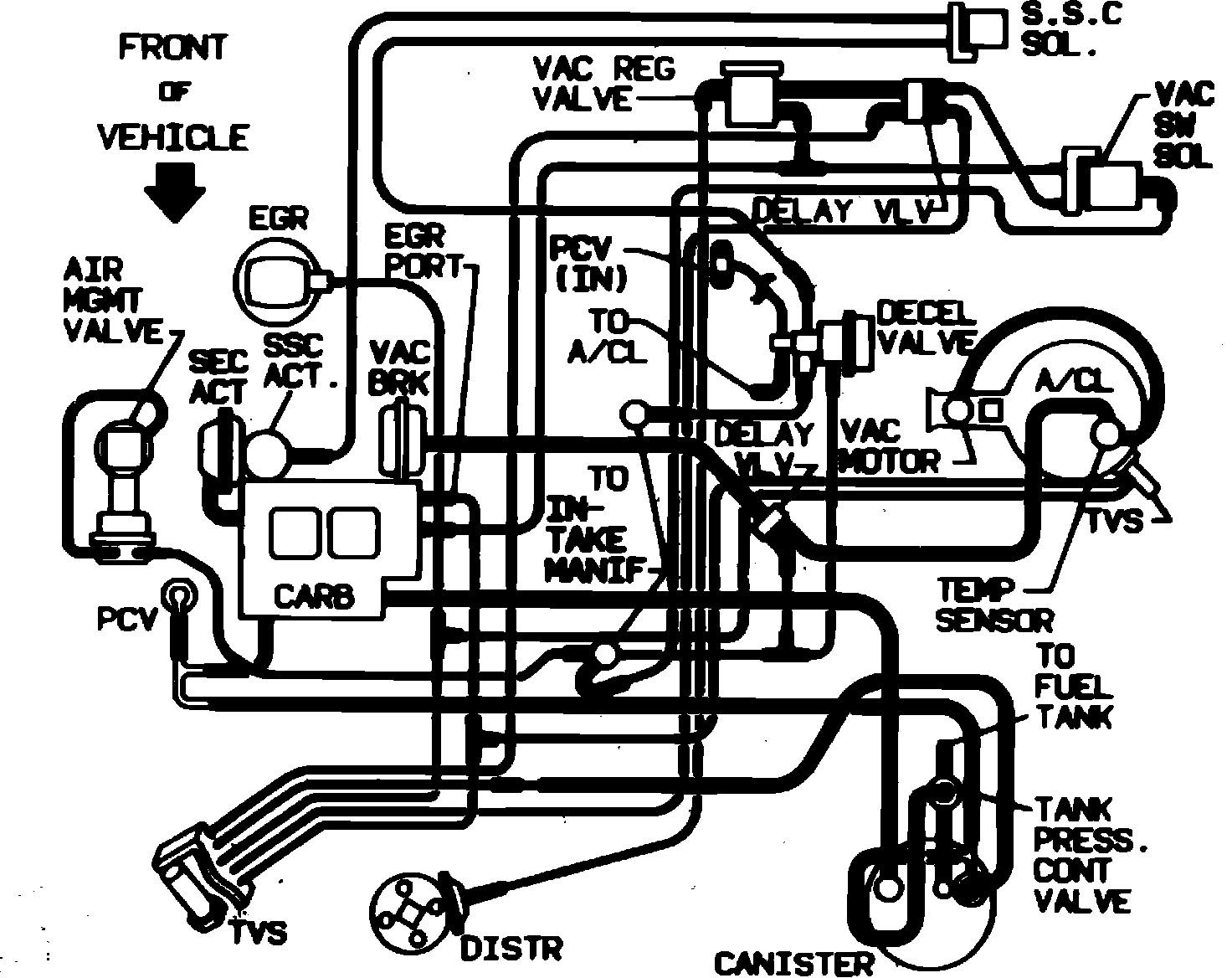

Fig. 4 Vacuum Hose Routing. 1987 Chevette & 1000 W/4-97 (1.6L) 2 Bbl., With M/T & A/C (VIN C):
