Emission Controls & Engine Data Sensors

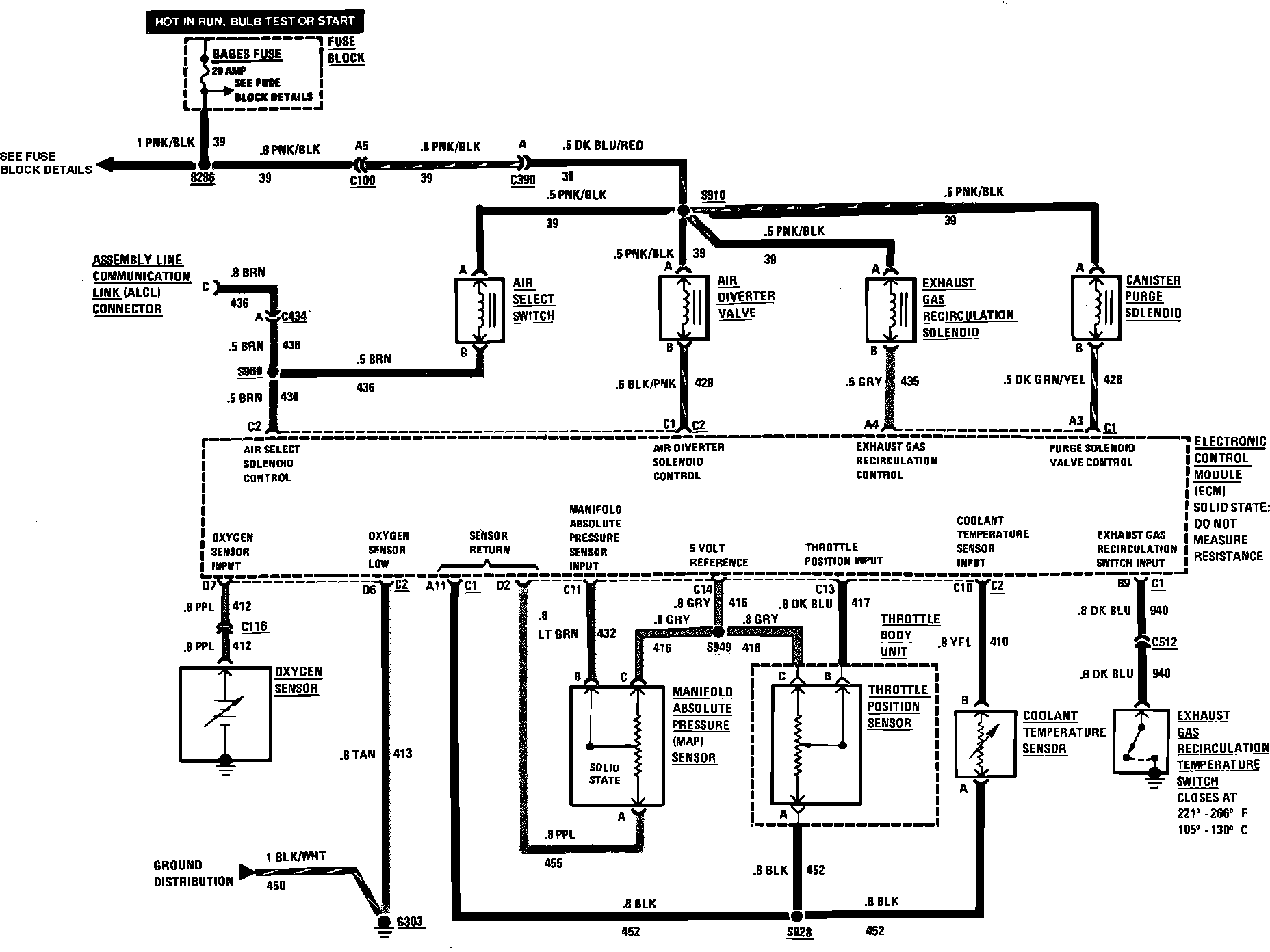

Throttle Body Injection Wiring Circuit (Emission Controls & Engine Data Sensors):
