Home >> Chevrolet >> 1986 >> Monte Carlo V8-305 5.0L VIN H 4-bbl >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

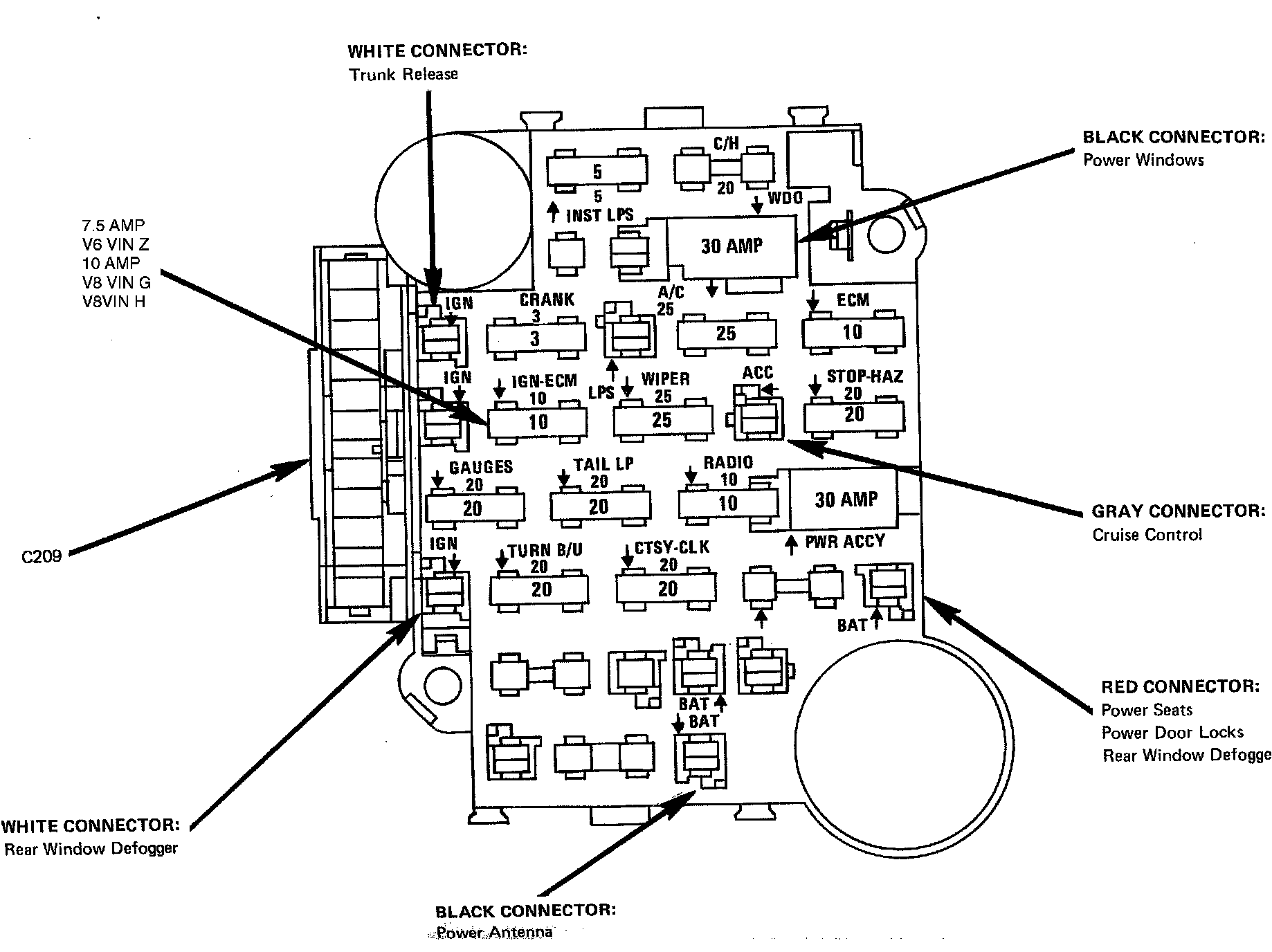

Fuse Block: Application and ID

Fuse Block App And ID:
