Antenna Base Plate - Cracked or Loose: Overview

Number: 86-240

Section: 10

Date: JUNE, 1987
Subject: CRACKED ANTENNA BASE PLATE


Model and Year: 1986 NOVA

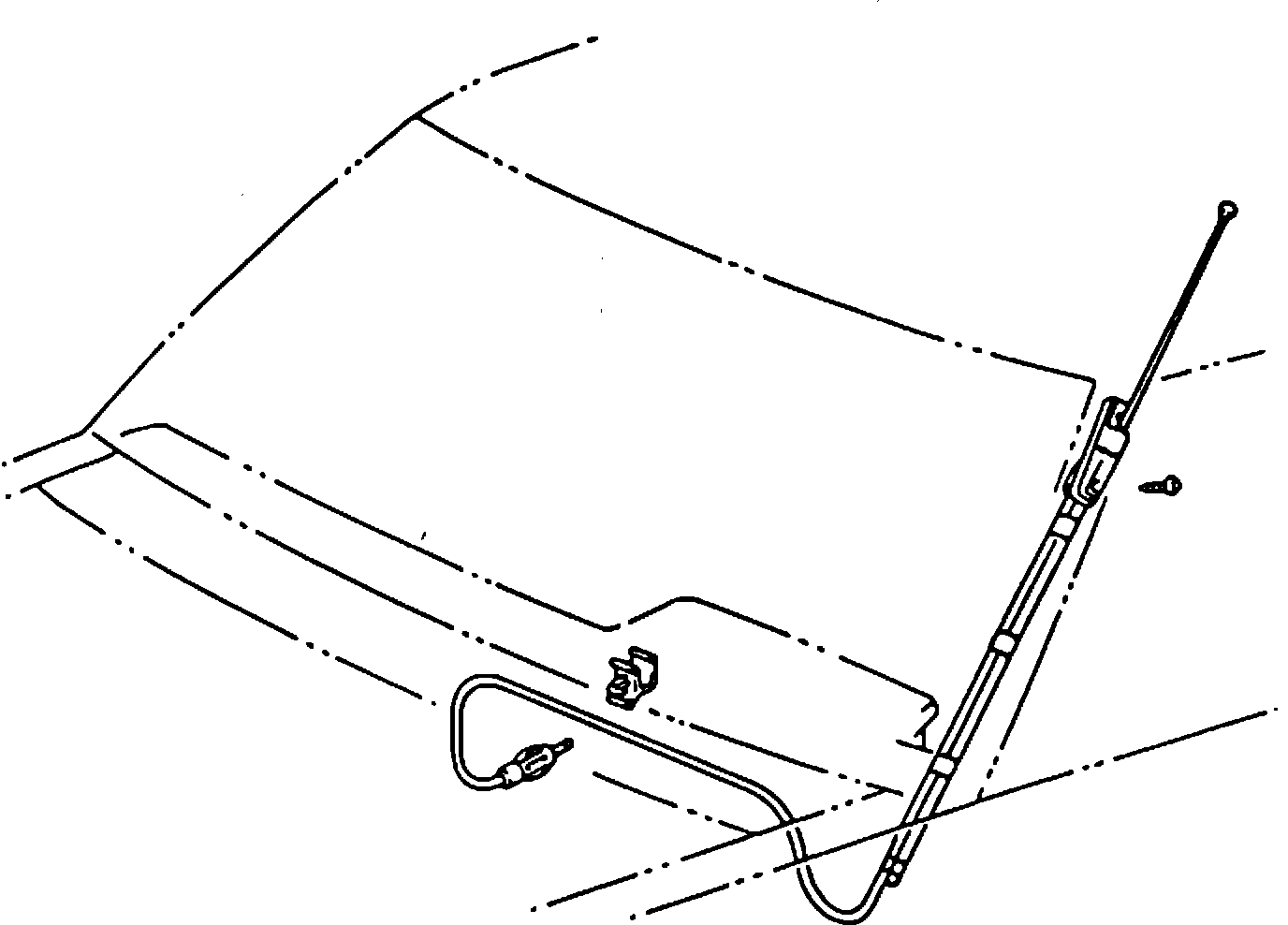

FIGURE 1 - ANTENNA MAST MOUNTING BASE:




TO: ALL CHEVROLET DEALERS


Some 1986 Chevrolet Nova model vehicles may experience cracking of the radio antenna mast mounting base (see Figure 1) resulting in unsightly appearance and possible loose attachment of the antenna mast.

VEHICLES INVOLVED

Involved are all 1986 Chevrolet Nova model vehicles built within the following VIN breakpoints:

Plant From Through

Fremont GZ165000 GZ248919

Fremont GZ300001 GZ306000

SPECIAL POLICY ADJUSTMENT

Should the antenna base crack, General Motors will replace the antenna assembly. This policy covers both parts and labor for a period of three (3) years, with no mileage limitation, from the date the vehicle was originally placed in service.

This "SPECIAL POLICY ADJUSTMENT BULLETIN" should be filed in the three ring binder furnished to the dealer by General Motors.
PARTS INFORMATION

Parts are to be obtained from General Motors Service Parts Operations (GMSPO).

Part Number Description Quantity/Vehicle

94843837 Antenna Assembly 1
