A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 13
DTC 13

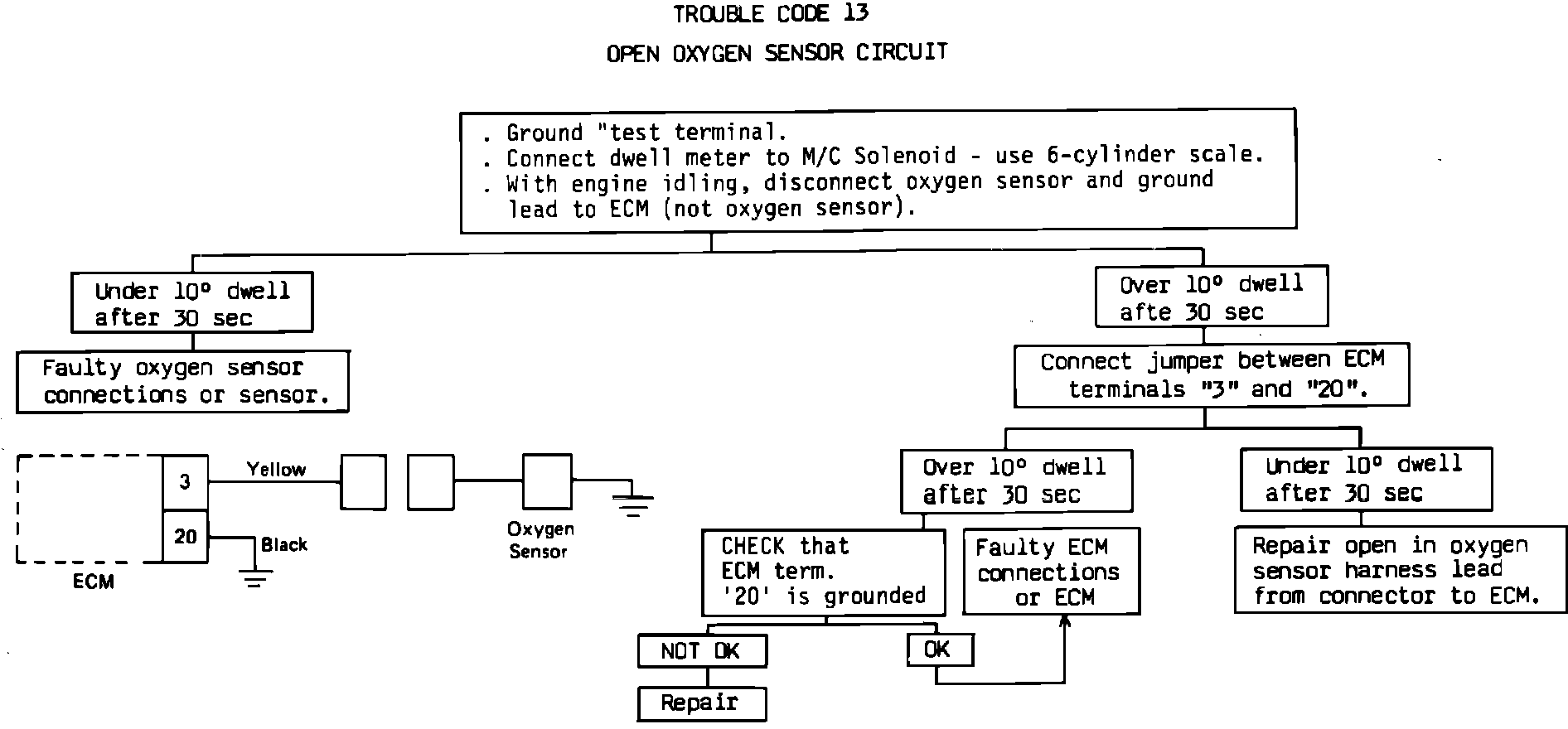

Fig. 17 Code 13, Open Oxygen Sensor Circuit:
