A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 15
DTC 15

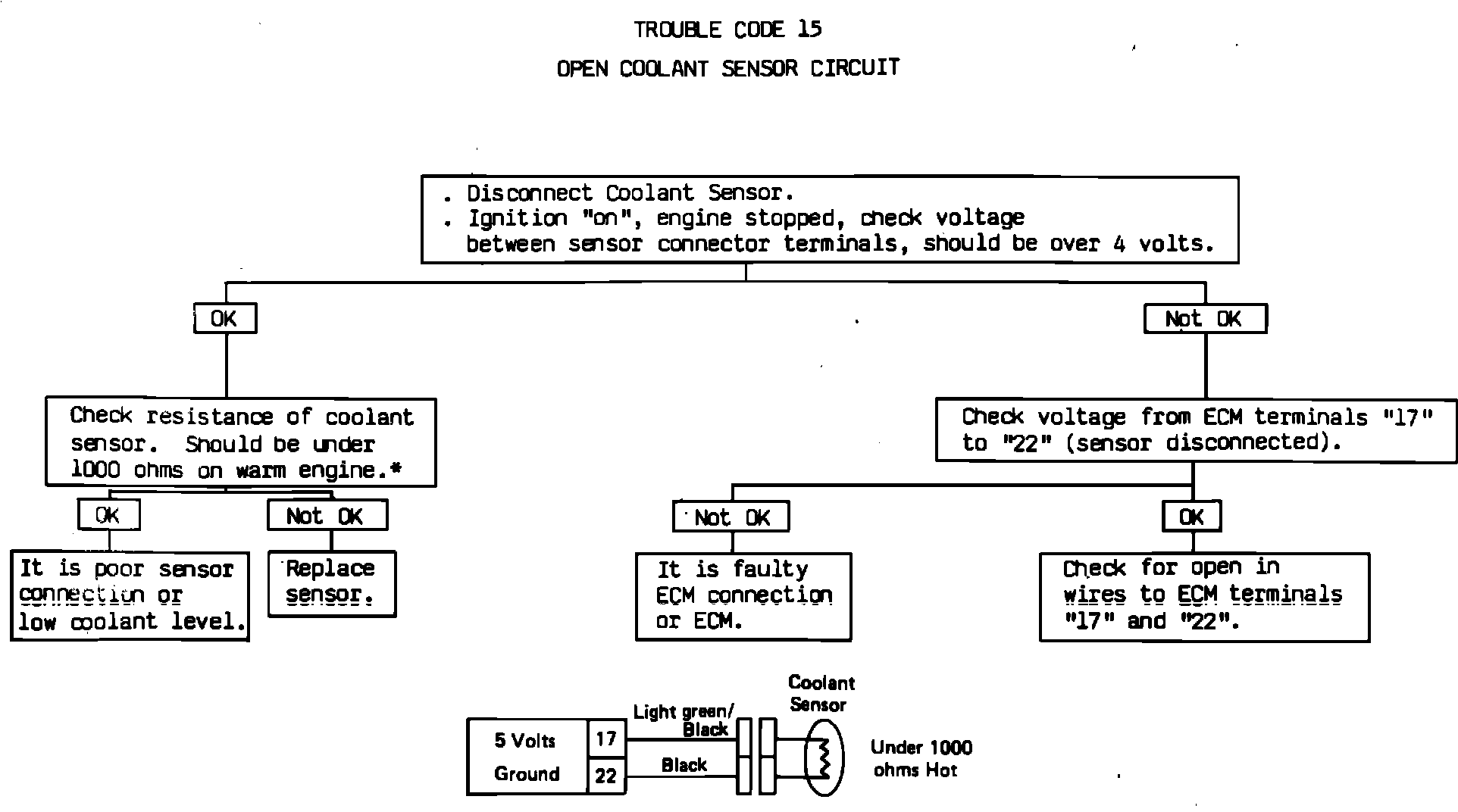

Fig. 19 Code 15, Open Coolant Sensor Circuit:
