A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 21
DTC 21
Fig. 20a Code 21, Throttle Position Sensor & Idle Switch Circuit (Part 1 of 2):

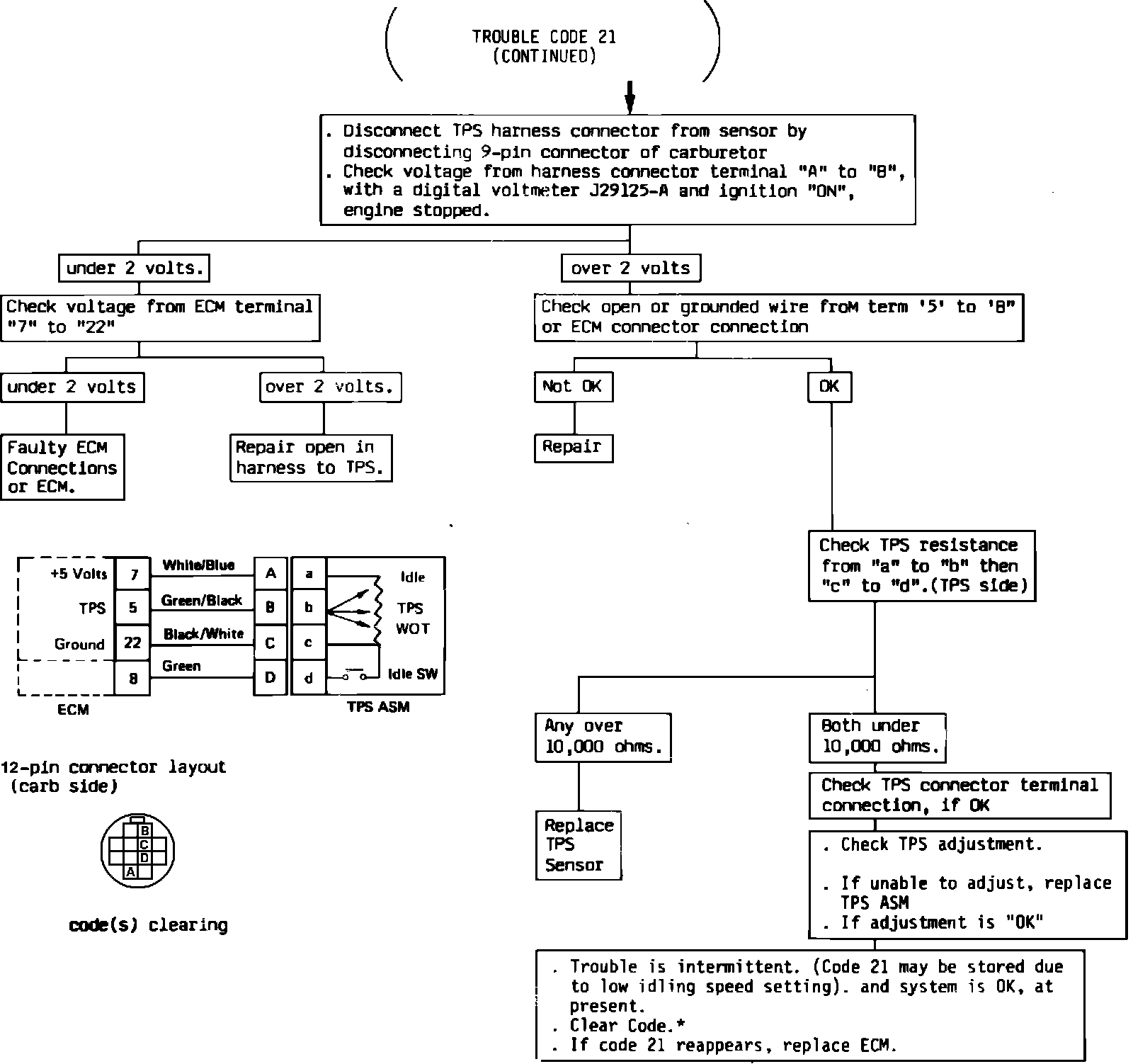

Fig. 20b Code 21, Throttle Position Sensor & Idle Switch Circuit (Part 2 of 2):
