A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
Chart 2 Dwell Fixed Between 15 - 50 Open Coolant/Oxygen Sensor
Chart 2 Dwell Fixed Between 15 - 50 Open Coolant/Oxygen Sensor

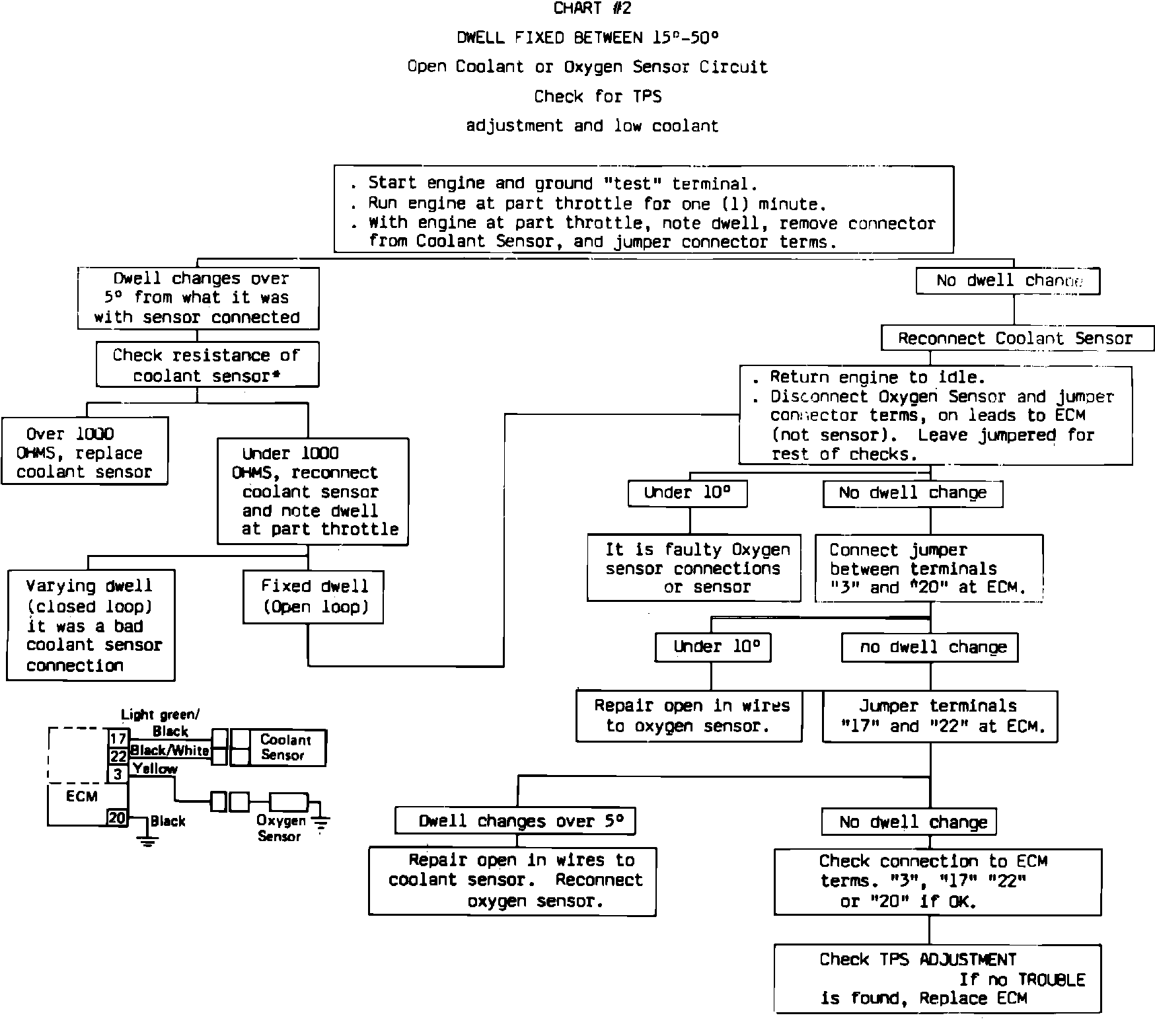

Fig. 9 Dwell fixed between 15 - 50, open coolant or oxygen circuit:
