Powertrain Management: Diagrams

Emission Control System:



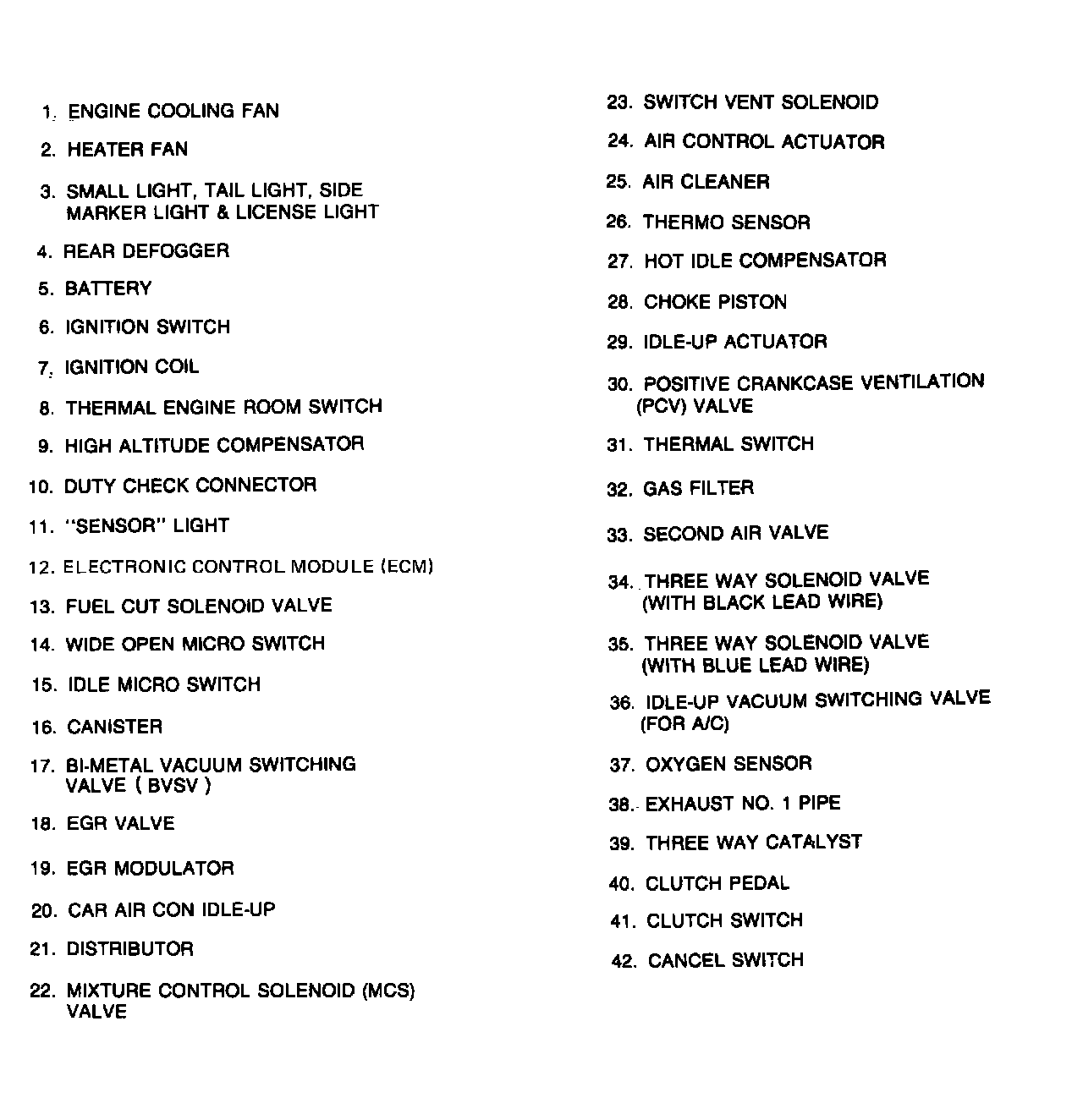

Emission Control System - Key:

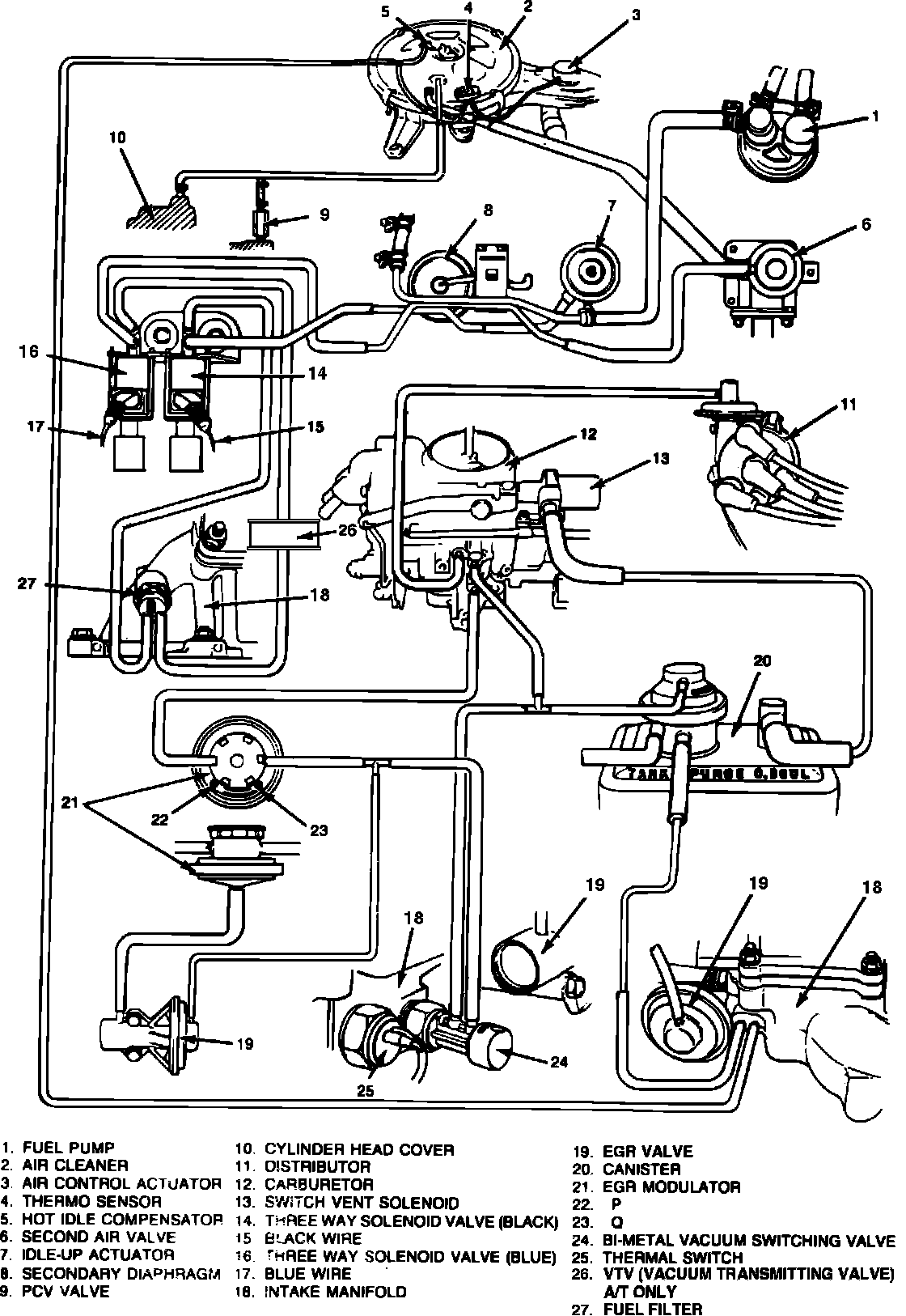

Fig. 1 Vacuum hose routing. 1985 - 86 3-61/1.0L, 2 Bbl.:

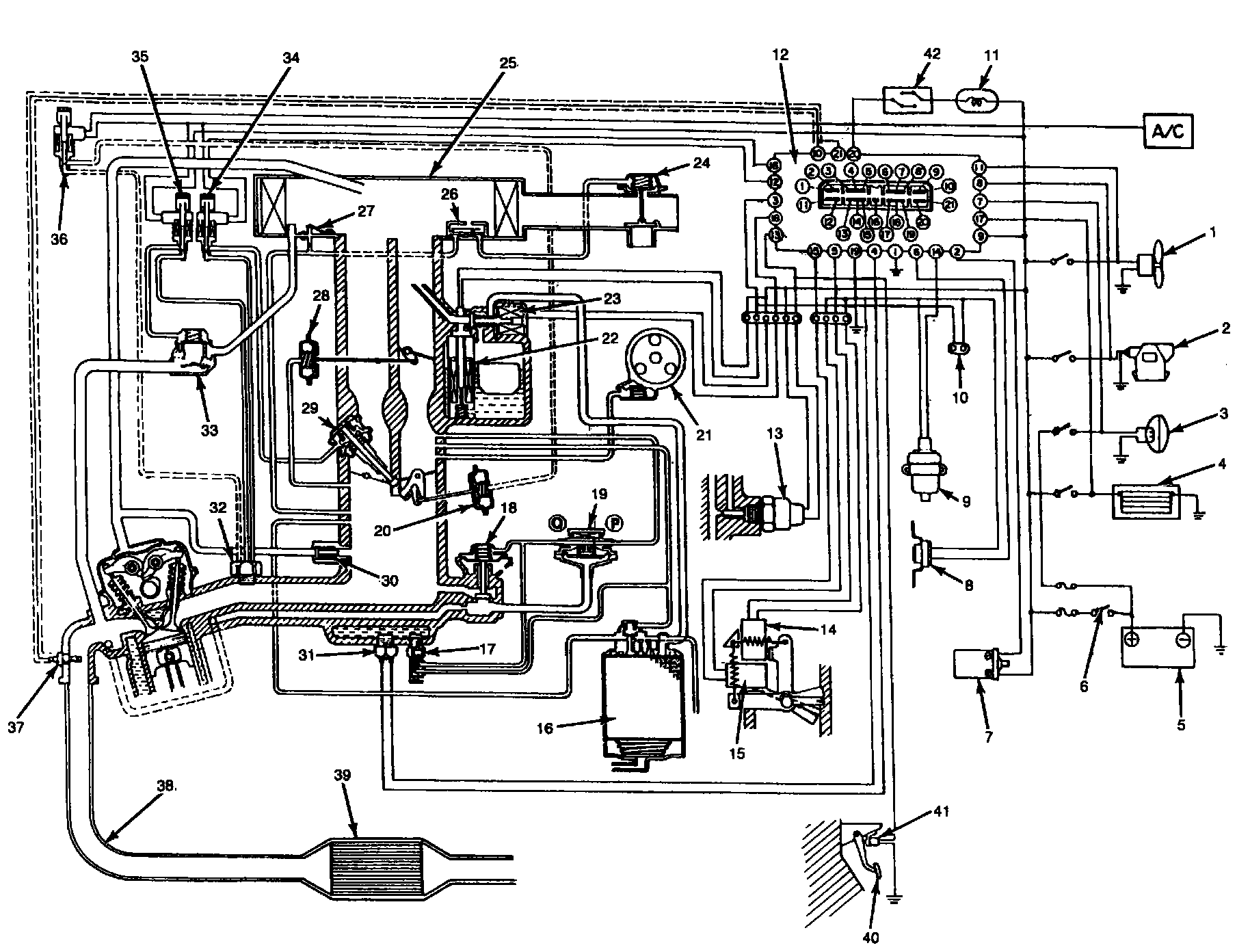

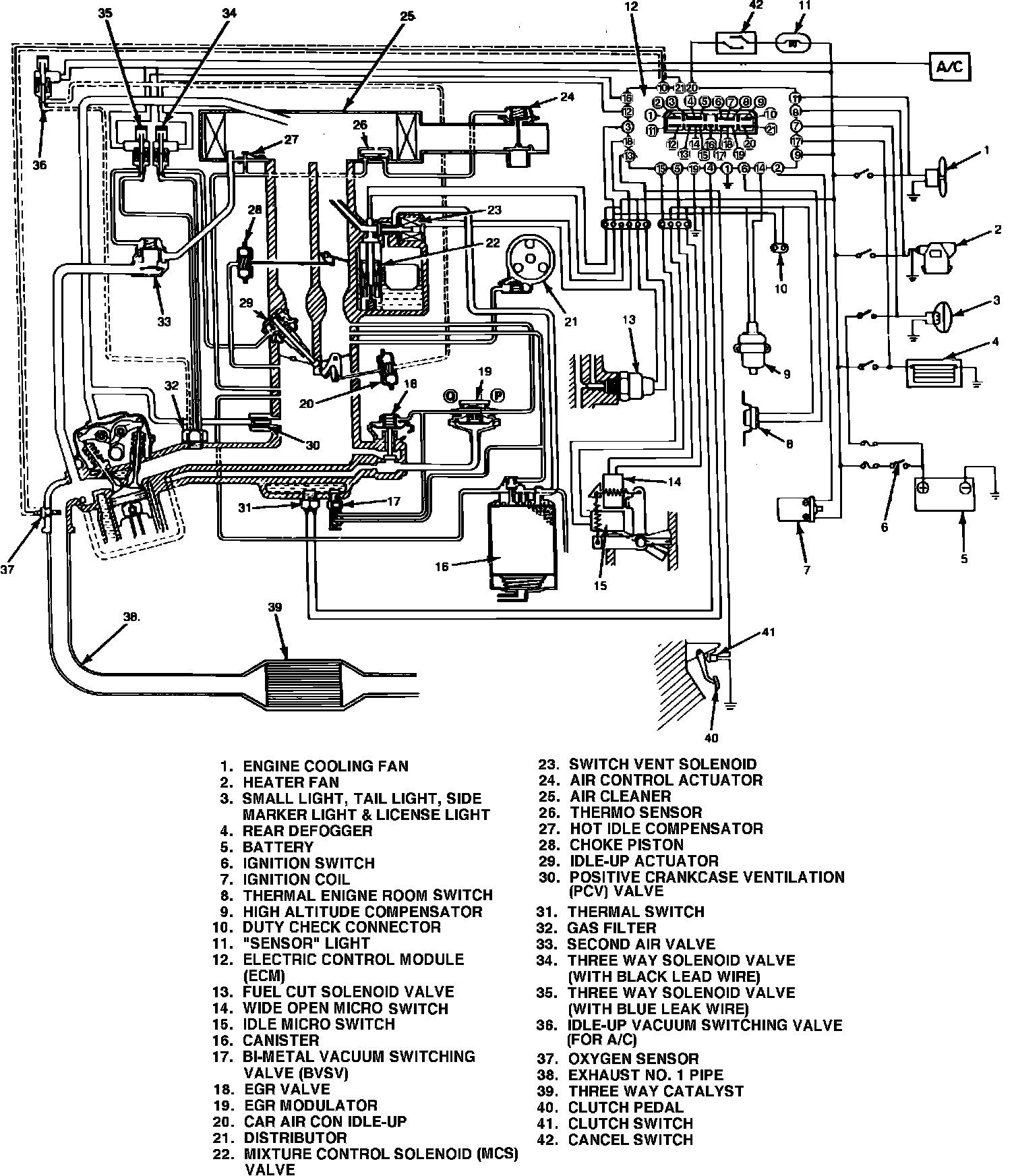

Fig. 2 Emission control system schematic. 1985 - 86 3-61/1.0L, 2 Bbl.:
