Turn Signals

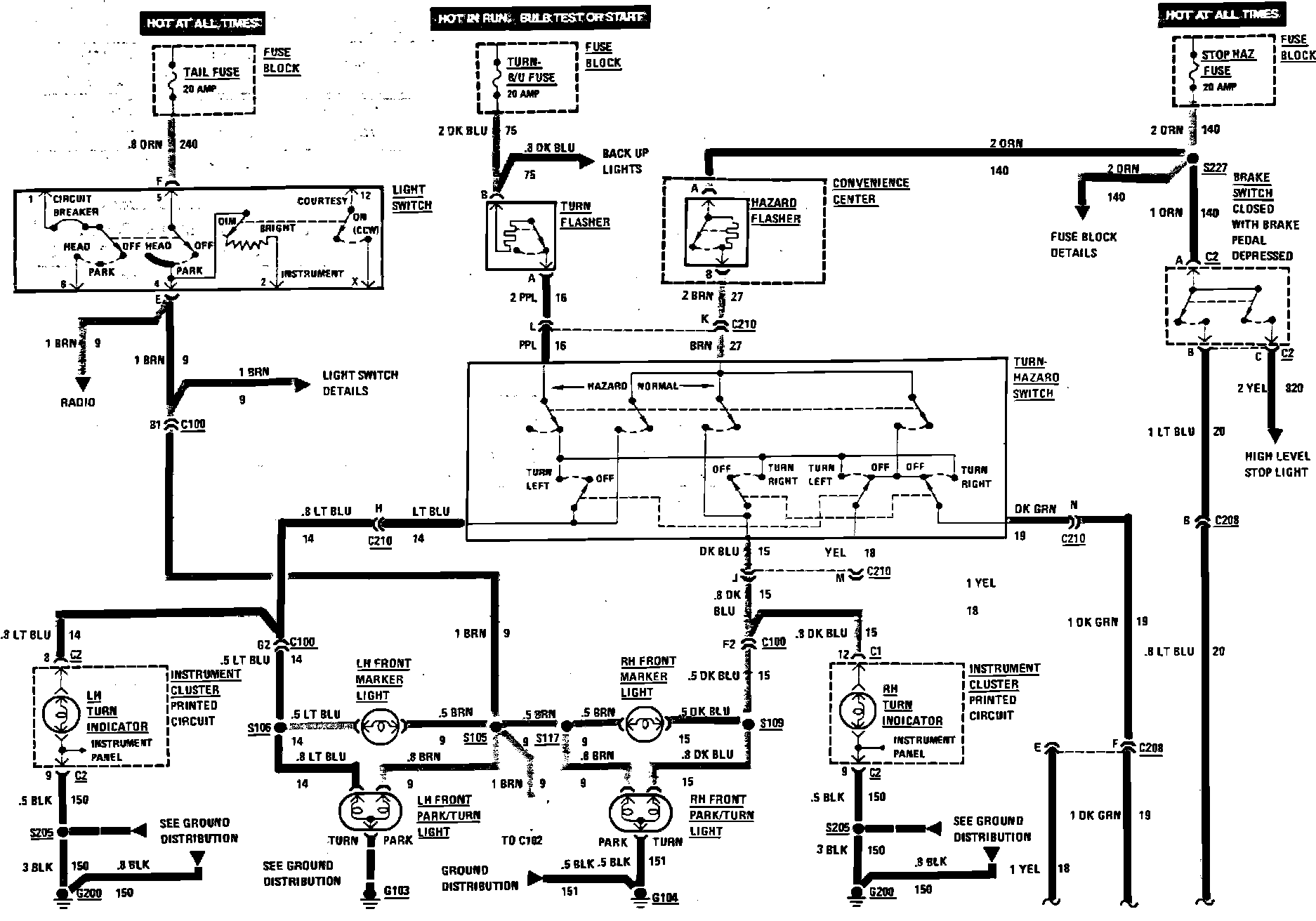

Exterior Lamps Wiring Circuit (Front Marker, Hazard, Park, Stop & Turn):
Exterior Lamps Wiring Circuit (Front Marker, Hazard, Park, Stop & Turn):
