Mirrors
>>
Less Automatic Mirror
Less Automatic Mirror

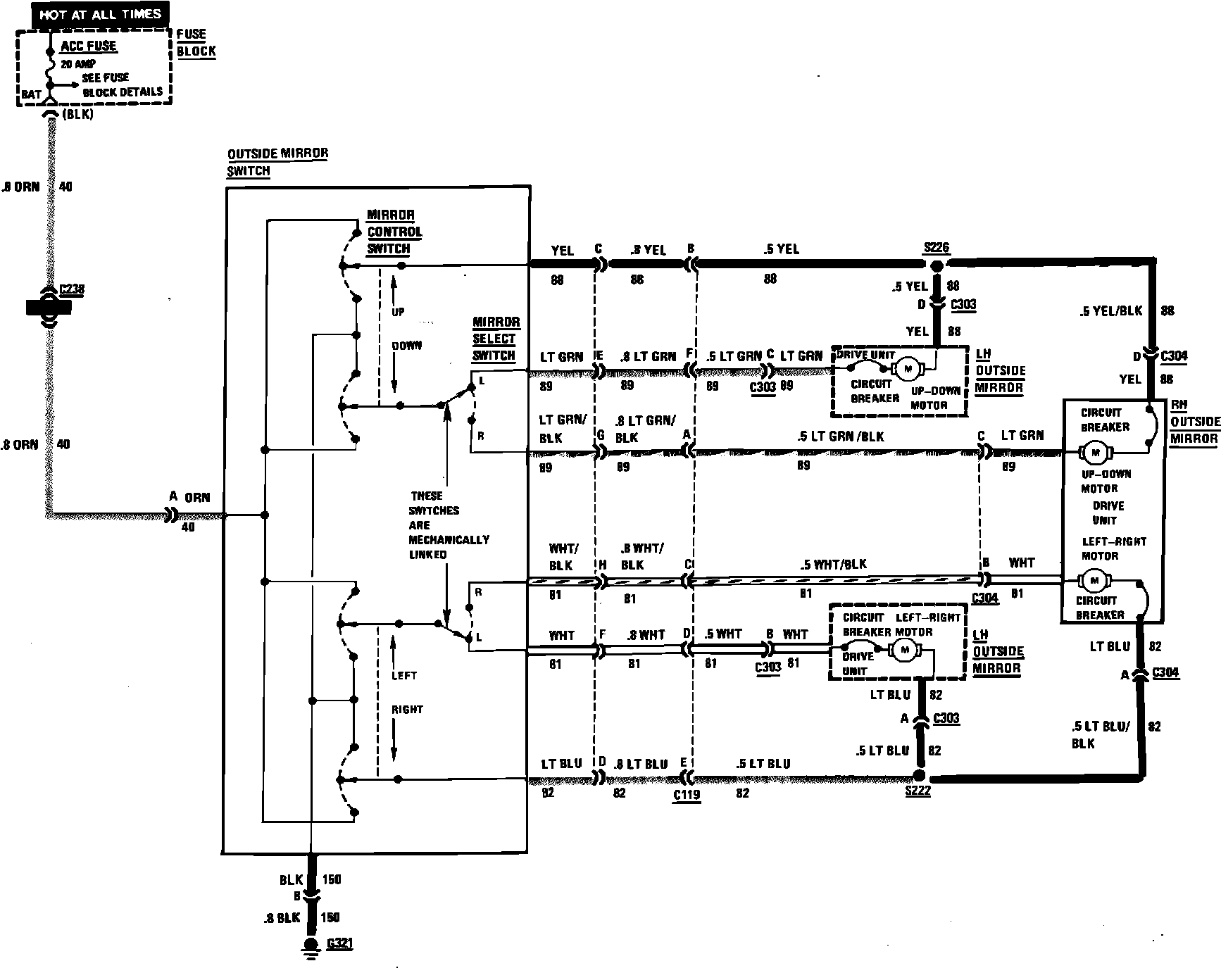

Power Mirror Wiring Circuit Less Automatic Mirror:
