Mirrors
>>
W/Automatic Mirror & Manual Transmission
W/Automatic Mirror & Manual Transmission

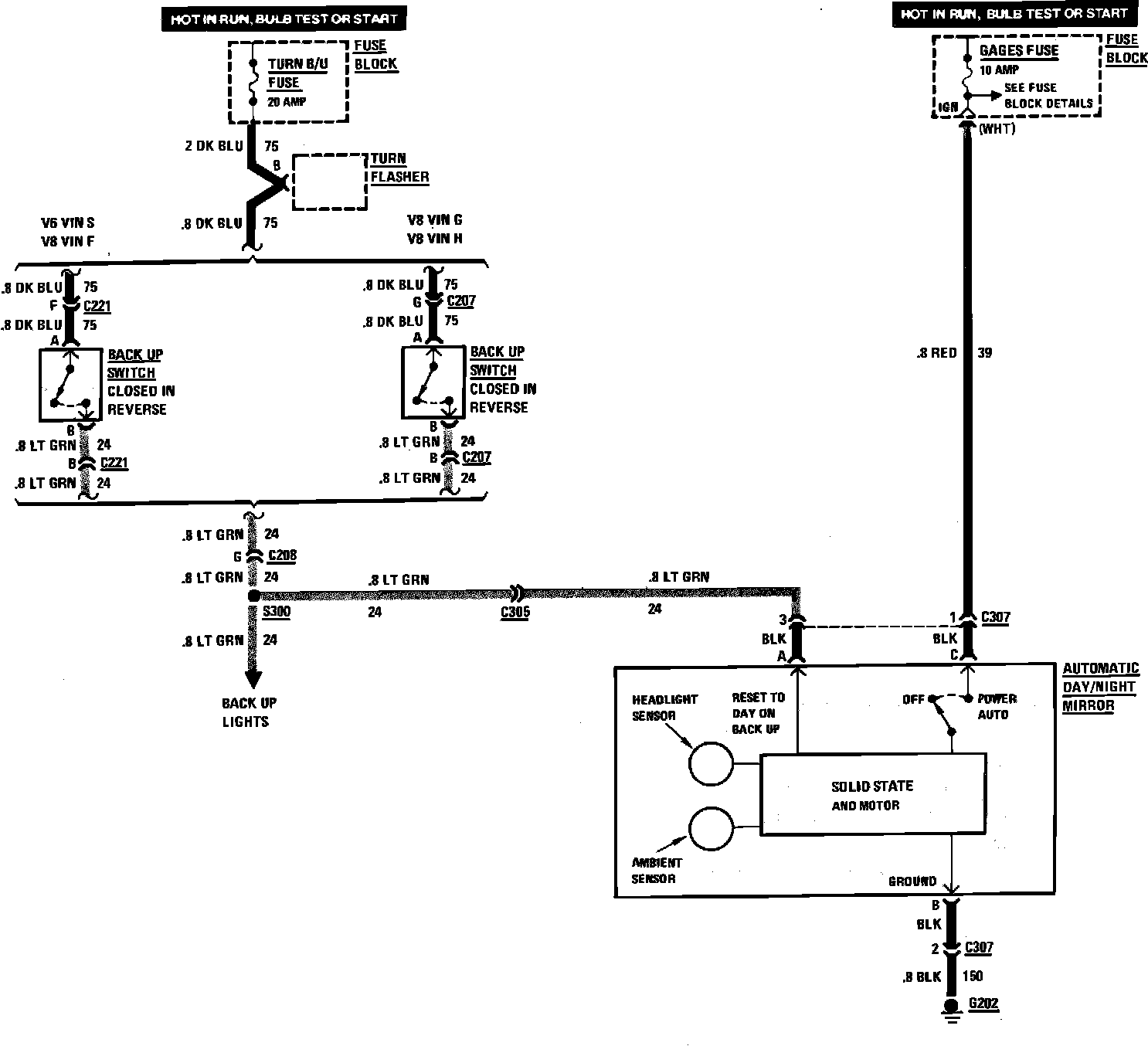

Power Mirror Wiring Circuit W/Automatic Mirror & Manual Transmission:
