Radiator Cooling Fan Motor
>>
Standard Cooling
Standard Cooling

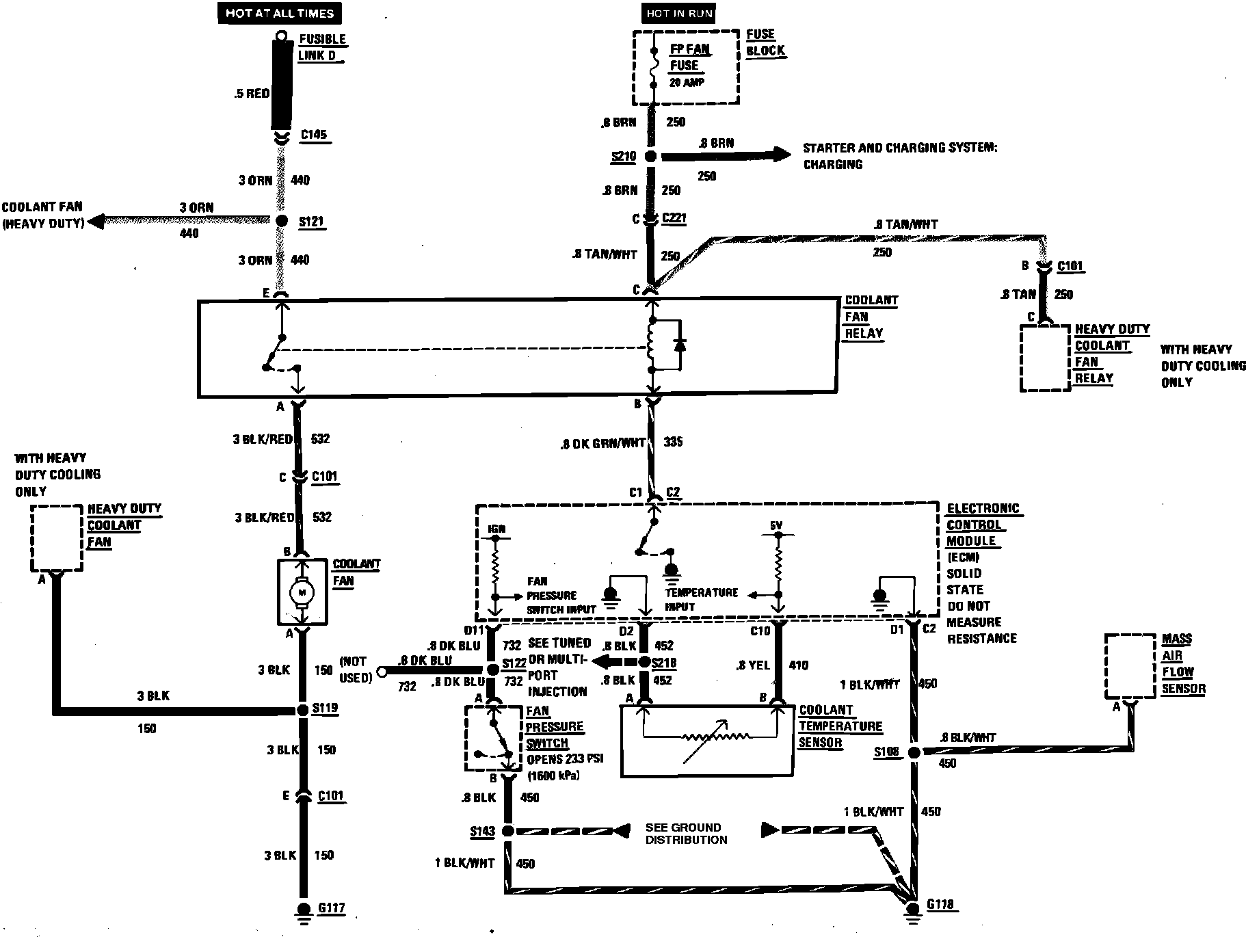

Coolant Fan Wiring Circuit (Heavy Duty Fan). W/V8-305/5.0L & V8-350/5.7L (VIN 8):
