Home >> Chevrolet >> 1987 >> Camaro V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Stereo

Stereo

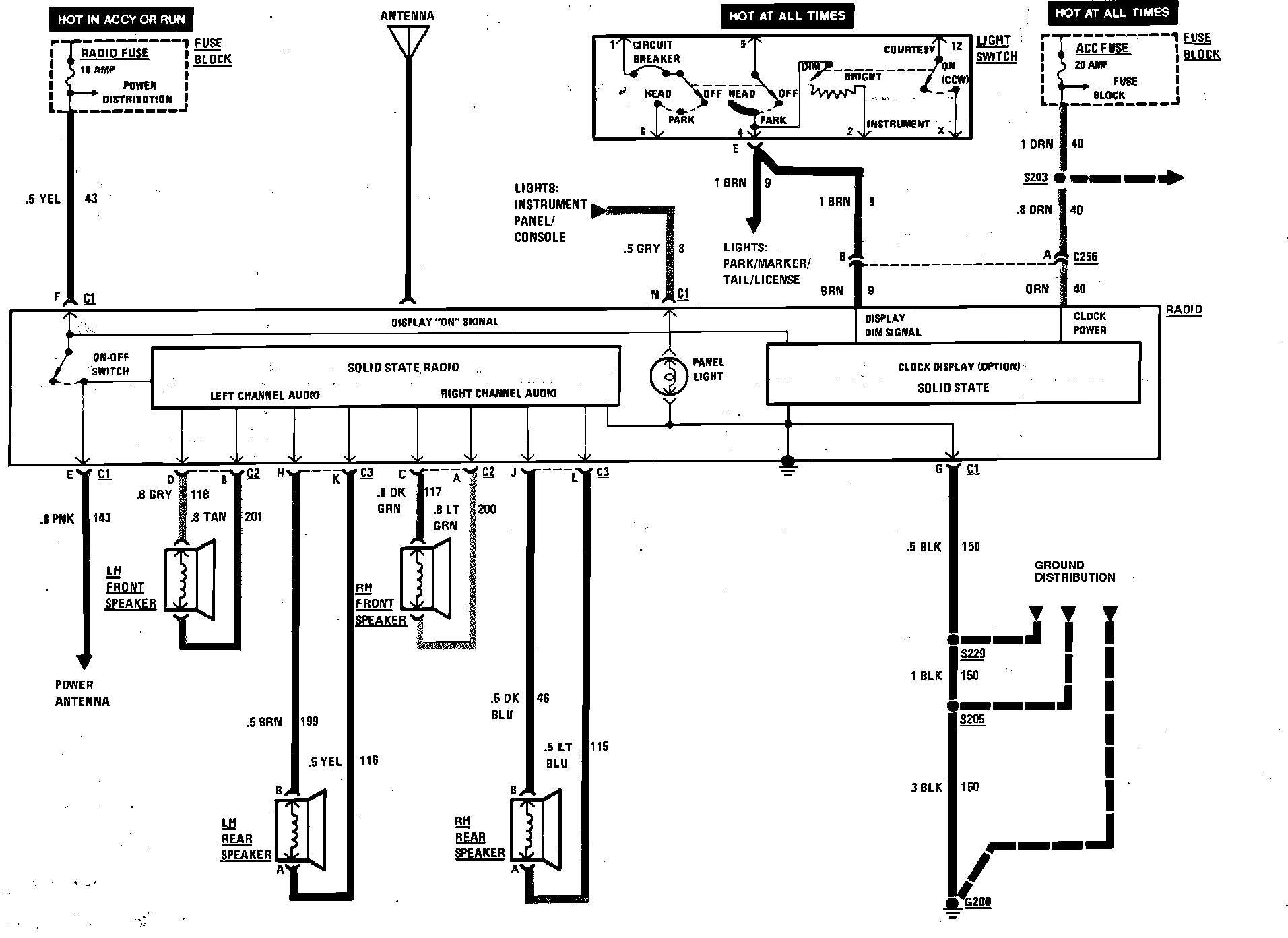

Radio Wiring Circuit. W/Stereo Radio:
