Home >> Chevrolet >> 1987 >> Caprice V6-262 4.3L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Ignition and Service Engine Soon Indicator

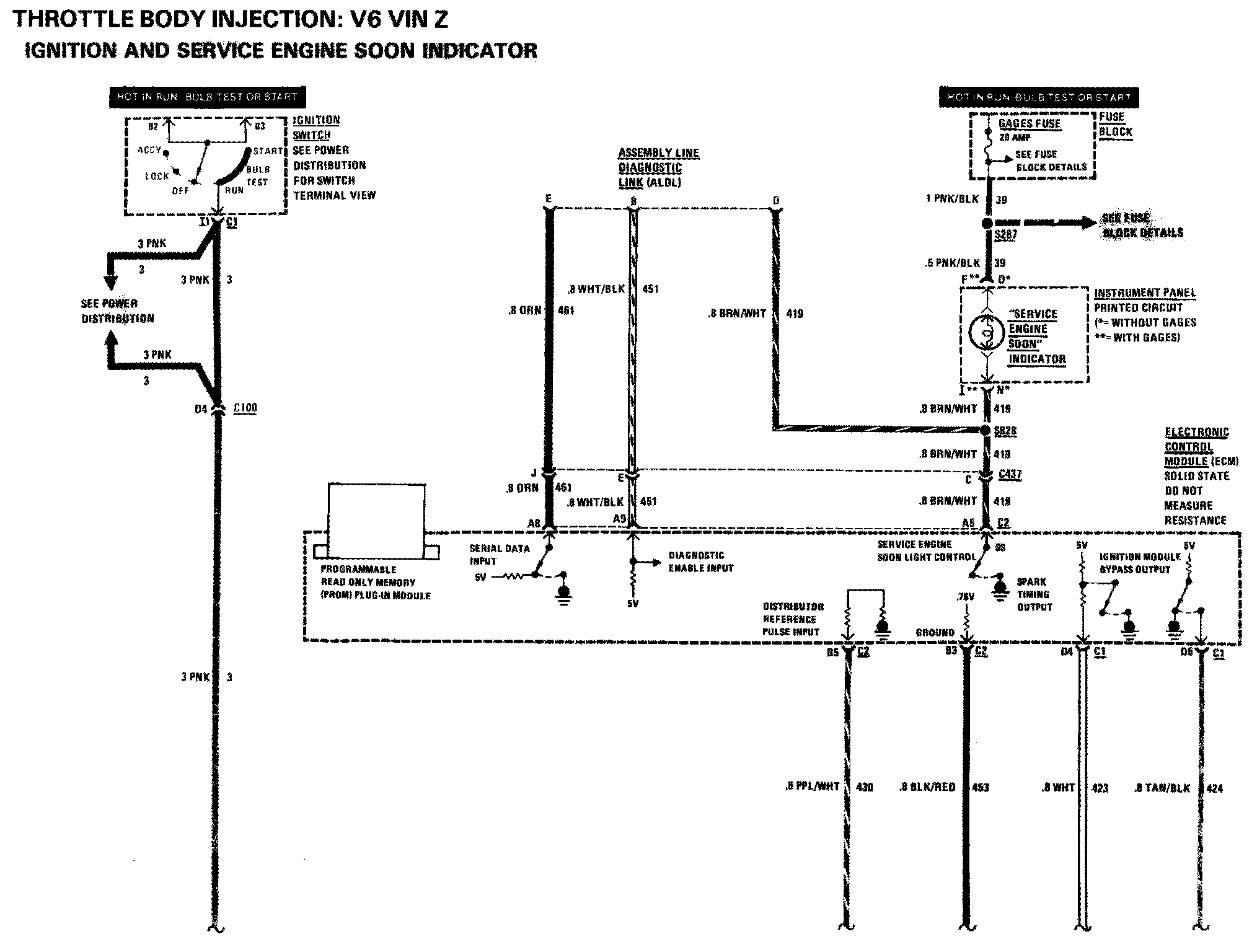

Ignition and Service Engine Soon Indicator
