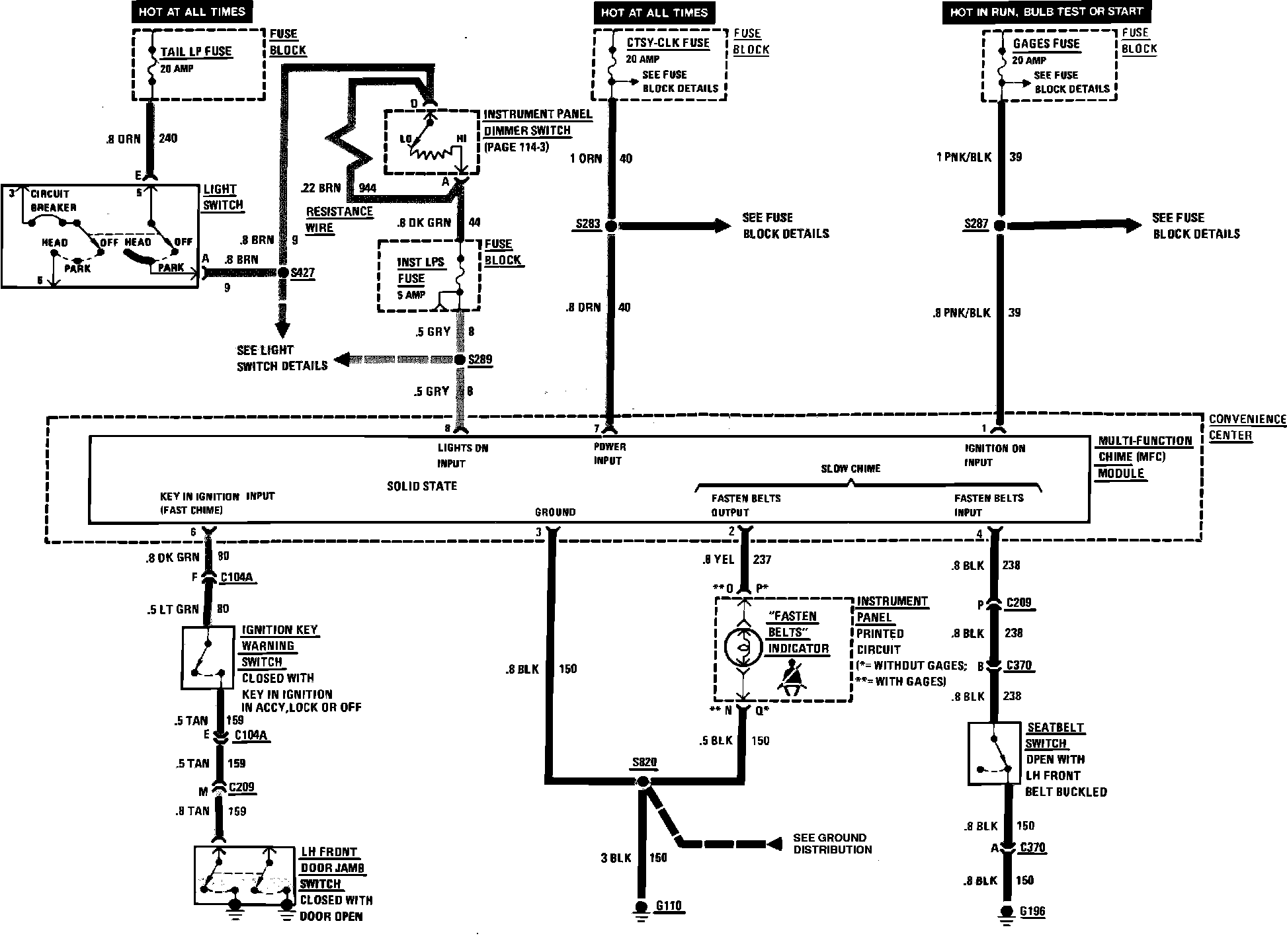

Alarms & Warning Chime Wiring Circuit
Alarms & Warning Chime Wiring Circuit
Alarms & Warning Chime Wiring Circuit:
