Pressure, Vacuum and Temperature Specifications
>>
Fuel Delivery and Air Induction
>>
System Specifications
System Specifications

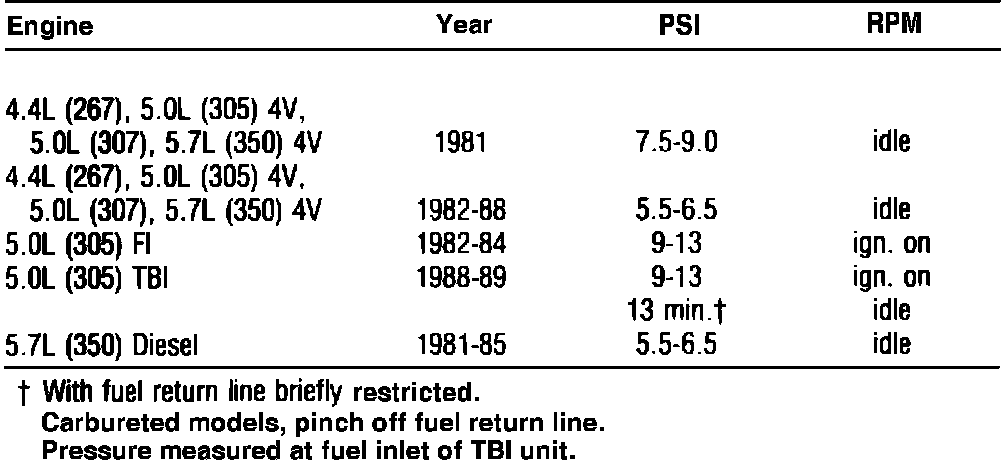

Fuel System Pressure - Carb & TBI, Diesel:
