Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1987
>>
Caprice Wagon V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
Wagon
Wagon

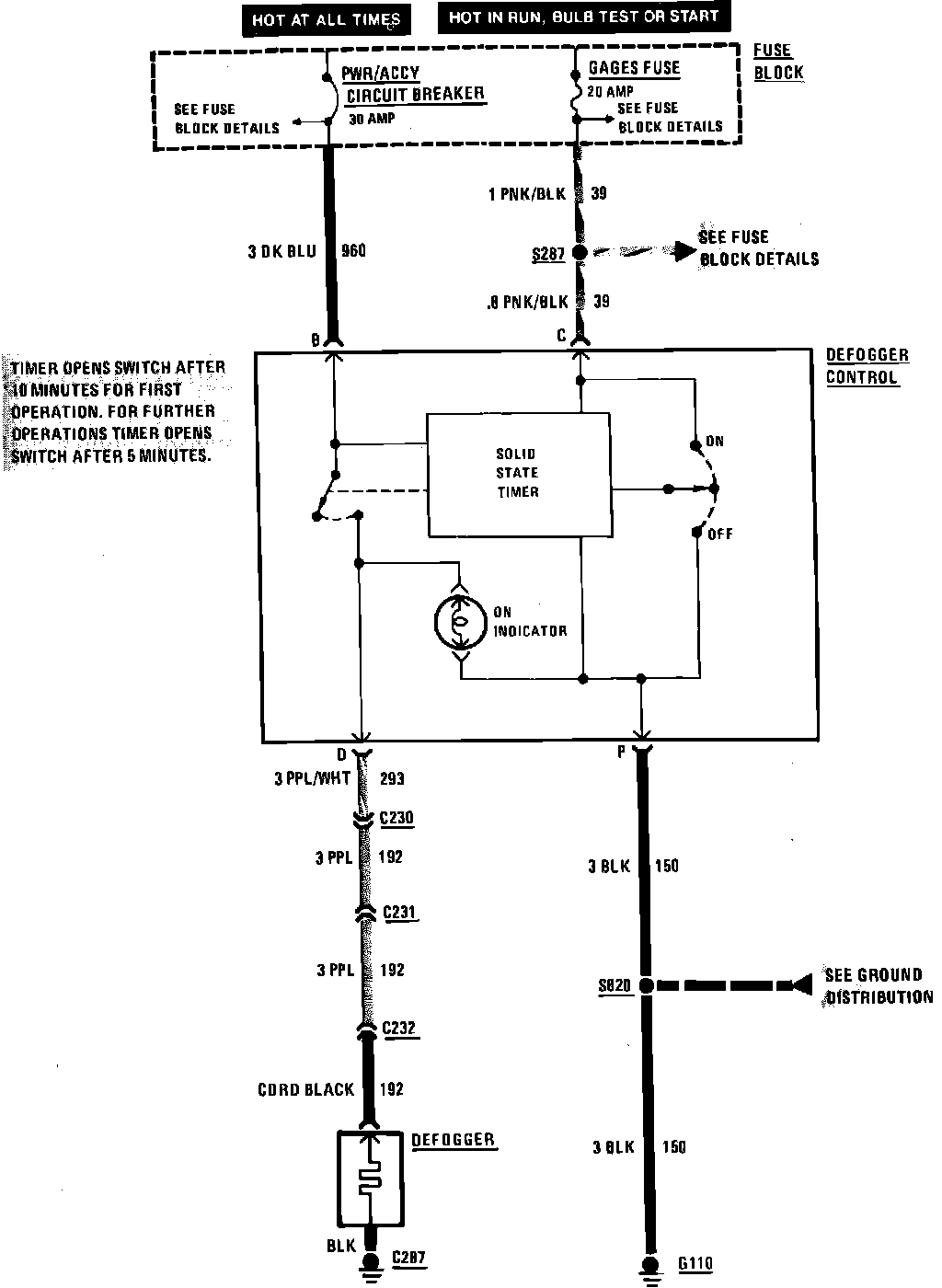

Defogger Wiring Circuit:
