Air Conditioning - Hose Routing

87chevy25
Number: 87-245-1B

Section: 1B

Date: OCT., 1987

Subject: AIR CONDITIONING HOSE ROUTINGS


Model and Year: 1987 CAVALIERS EQUIPPED WITH 2.0L OHV
ENGINE (VIN CODE 1) AND AIR CONDITIONING

TO: ALL CHEVROLET DEALERS


Some 1987 Cavaliers may not have proper clearance between some of the air conditioning hoses/lines and some engine components. This condition can lead to abrasion of air conditioning hoses/lines or melting of hoses if routed too close to exhaust system components.

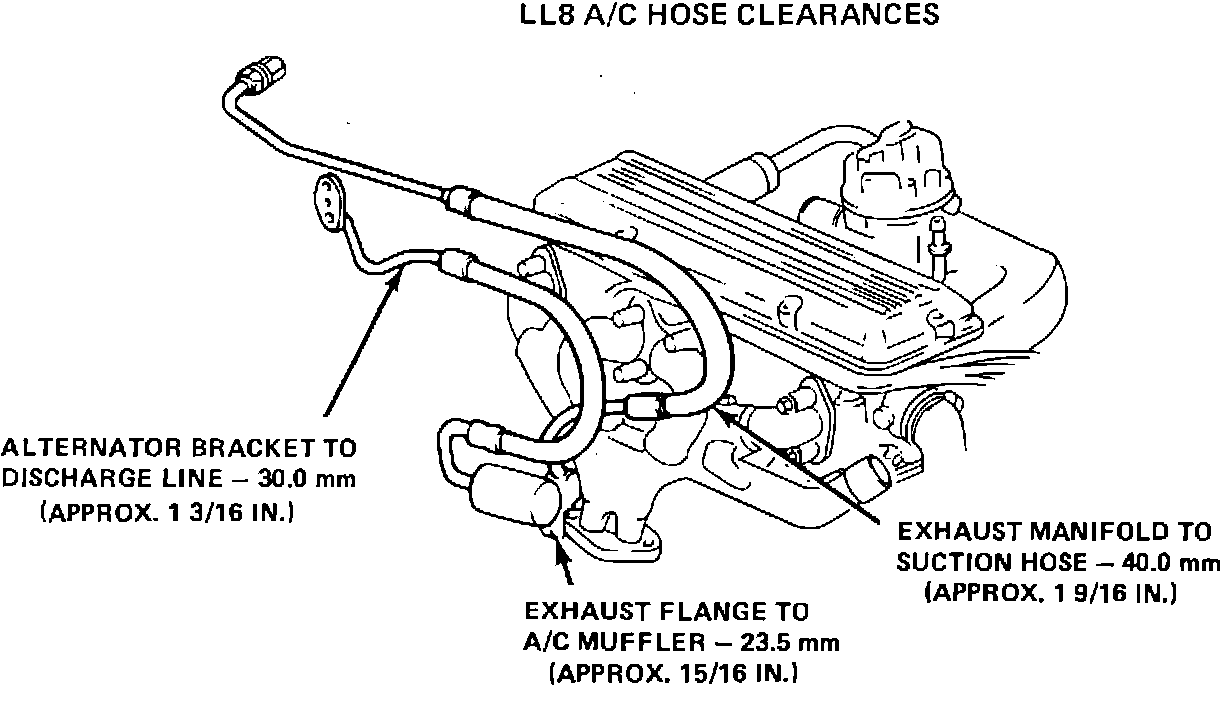

If any of these conditions are encountered, the air conditioning hose/pipe routings should be carefully adjusted to achieve the following minimum clearances. Refer to illustration.

A/C Muffler to Exhaust--------23.5 mm (approx. 15/16 in.)
Flange Suction Hose to Exhaust-------40.0 mm (approx. 1-9/16 in.)
Manifold Discharge Line to Alternator--30.0 mm (approx. 1-3/16 in.)
Bracket
