Rear Brake Wheel Cylinder - Attachment

Number: 87-22

Section: 5

Date: NOV., 1986
Subject: REAR BRAKE WHEEL CYLINDER ATTACHMENT

Model and Year: 1987 CAVALIER

TO: ALL CHEVROLET DEALERS

REAR BRAKE WHEEL CYLINDER ATTACHMENT:

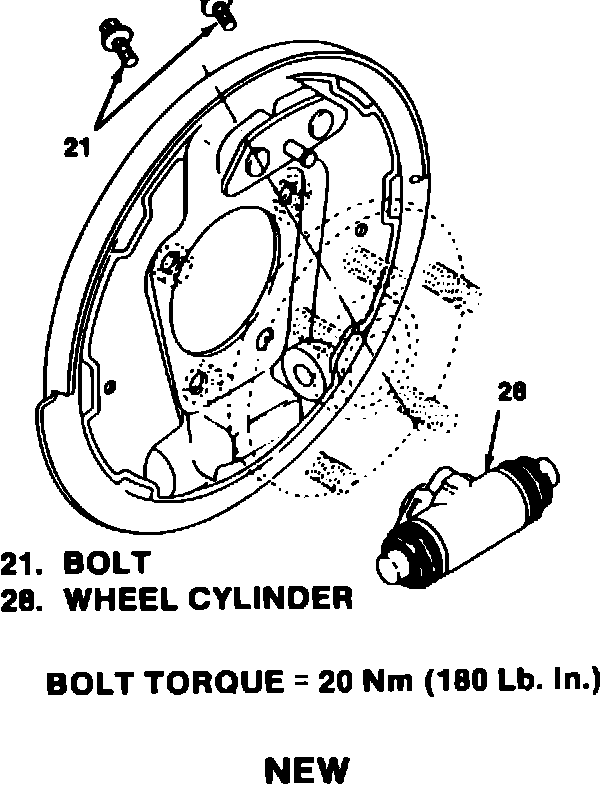

Early in January 1987, a production change will be made to the rear brake wheel cylinder attachment on Cavalier models. The wheel cylinders will be retained to the brake backing plate by bolts instead of the currently used retainer clip. (See Illustration). Refer to your current parts catalog when requiring service parts.
