Oil Pressure Sender/Switch

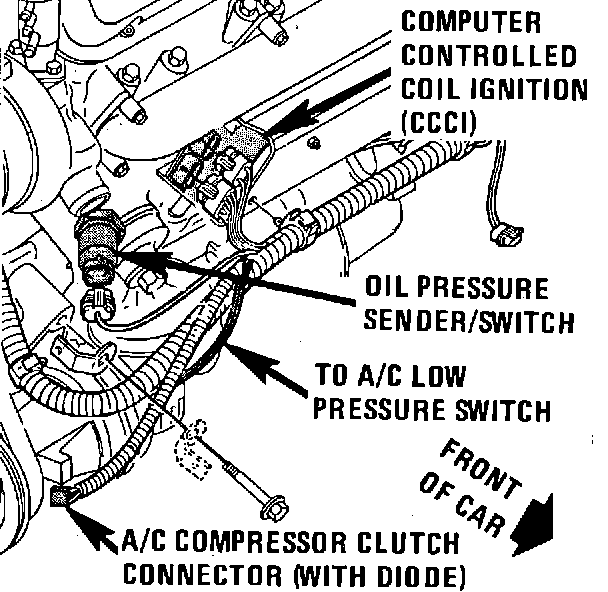

RH Front Of V6-173/2.8L:
RH Rear Of Engine Near Oil Filter
Applicable to: 8L (VIN W) Engine
