Home >> Chevrolet >> 1987 >> Cavalier/Z24 V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram

System Diagram

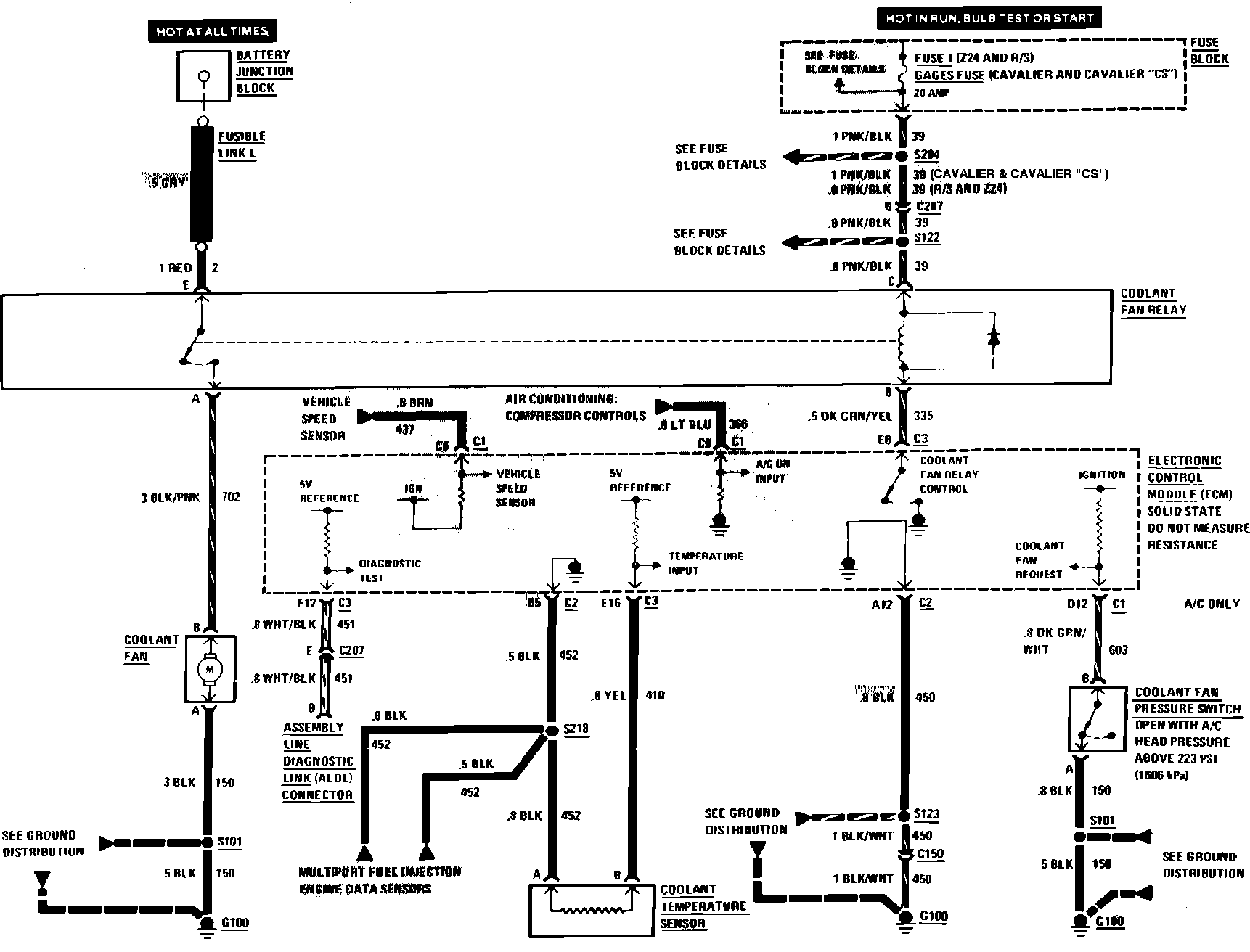

Fig. 43 Coolant Fan Wiring Circuit W/V6-173/2.8L Engine:
