Home >> Chevrolet >> 1987 >> Cavalier/Z24 V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Parking Lamp >> Cavalier & CS

Cavalier & CS

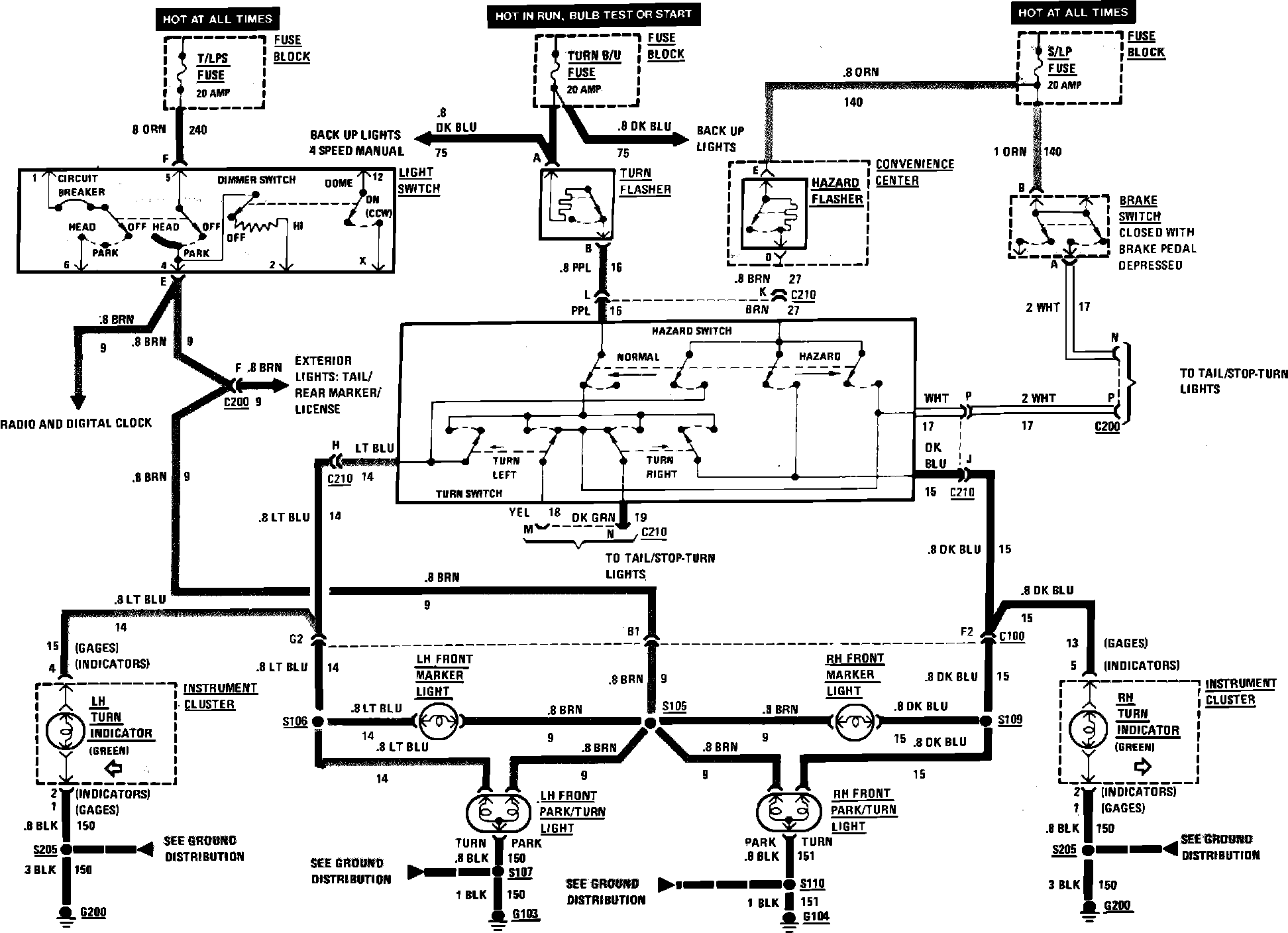

Fig. 66 Exterior Lamp Wiring Circuit (Hazard, Front Marker, Front Park, Stop & Turn:



Fig. 66 Exterior Lamp Wiring Circuit (Hazard, Front Marker, Front Park, Stop & Turn (Except Wagon):
