Cavalier/Z24 V6-173 2.8L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Alarm & Warning System
Alarm & Warning System

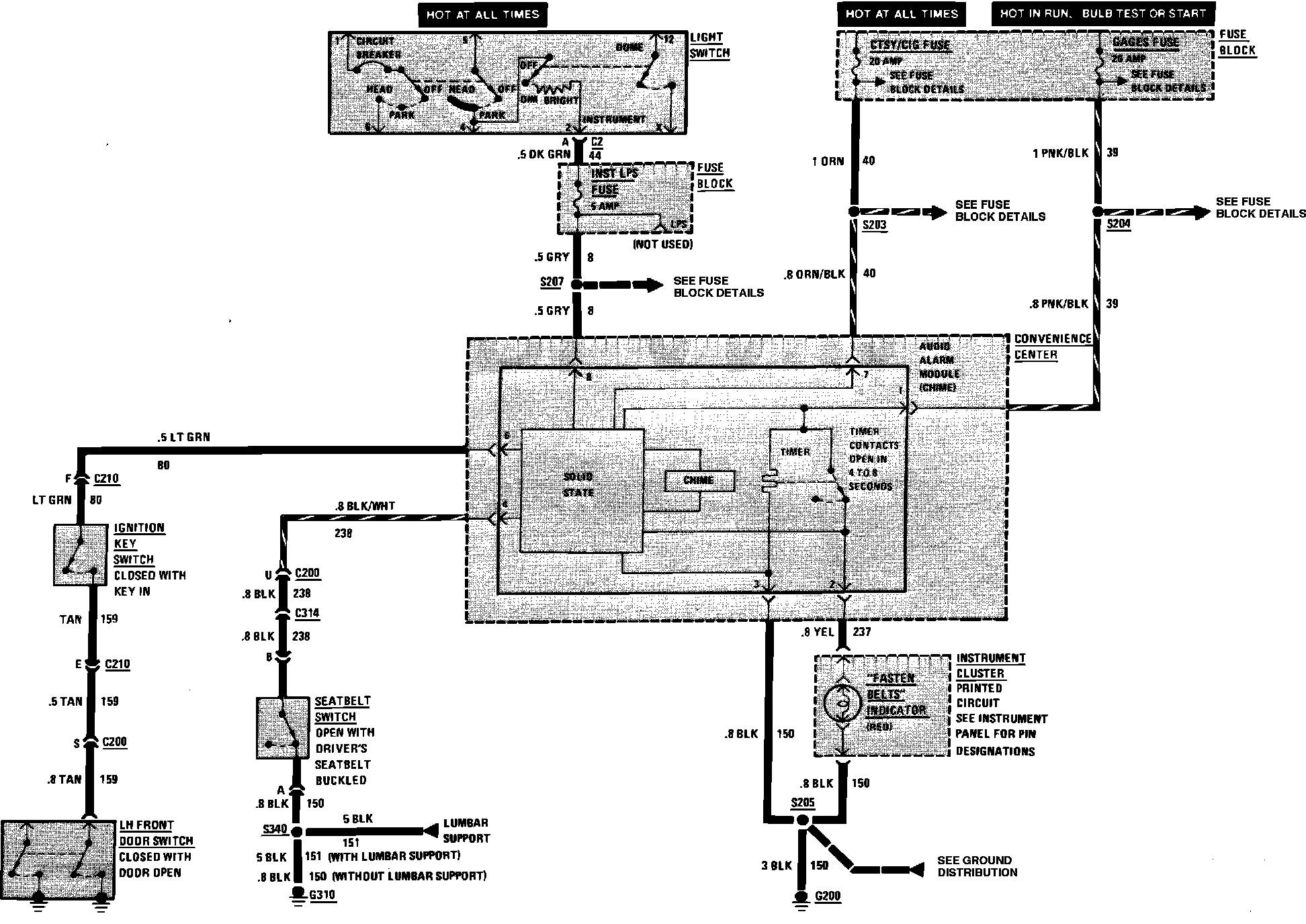

Fig. 20 Alarm & Warning Chime Wiring Circuit (Ignition Key, Lights-On & Seatbelt):
