Idle Speed Control & Vehicle Data Sensors

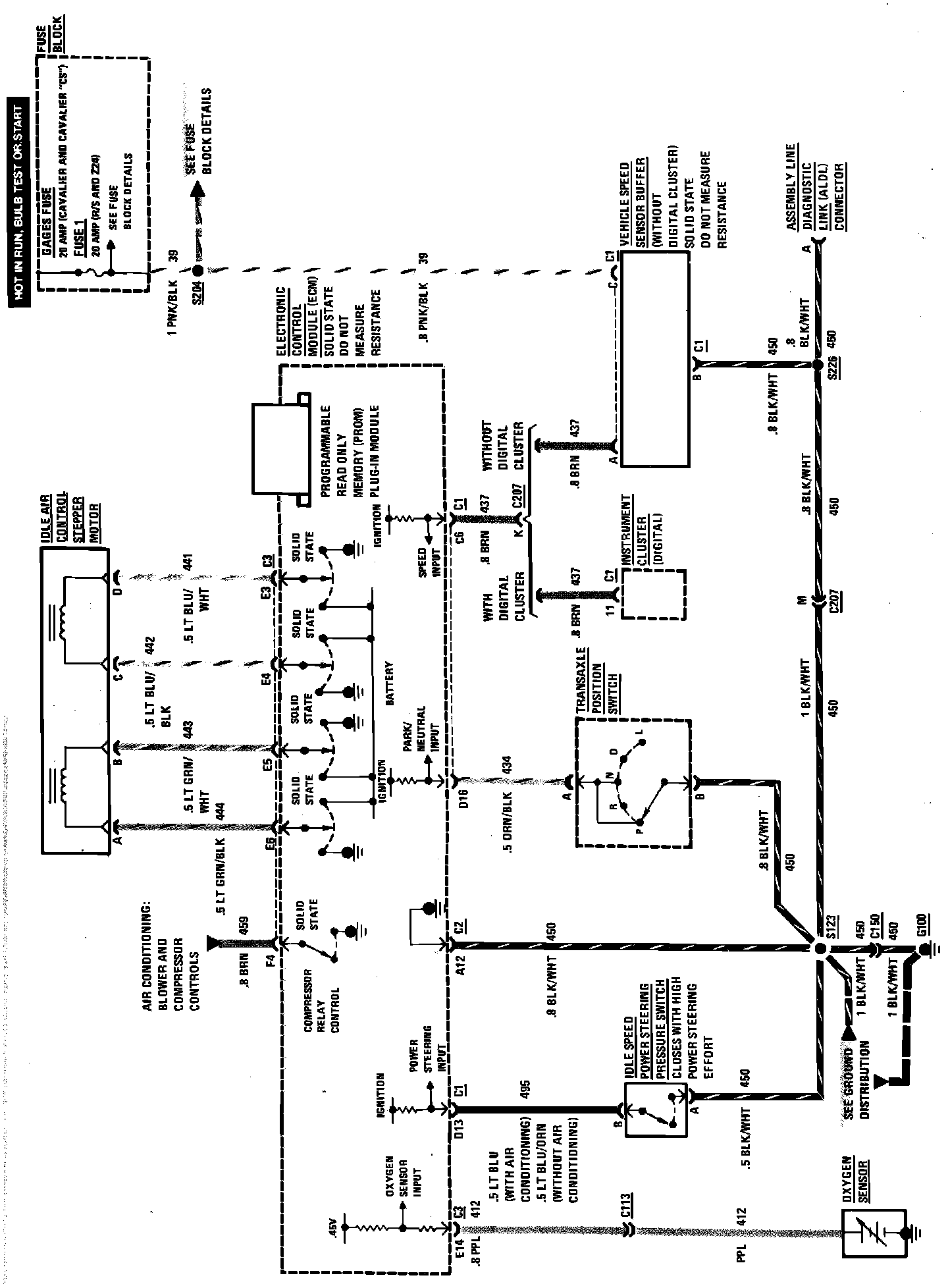

Fig. 227 Multi-Port Fuel Injection Wiring Circuit (Idle Speed Control & Data Sensors) W/V6-173/2.8L Engine:
