Engine Data Sensors, Cold Start & Torque Converter Clutch

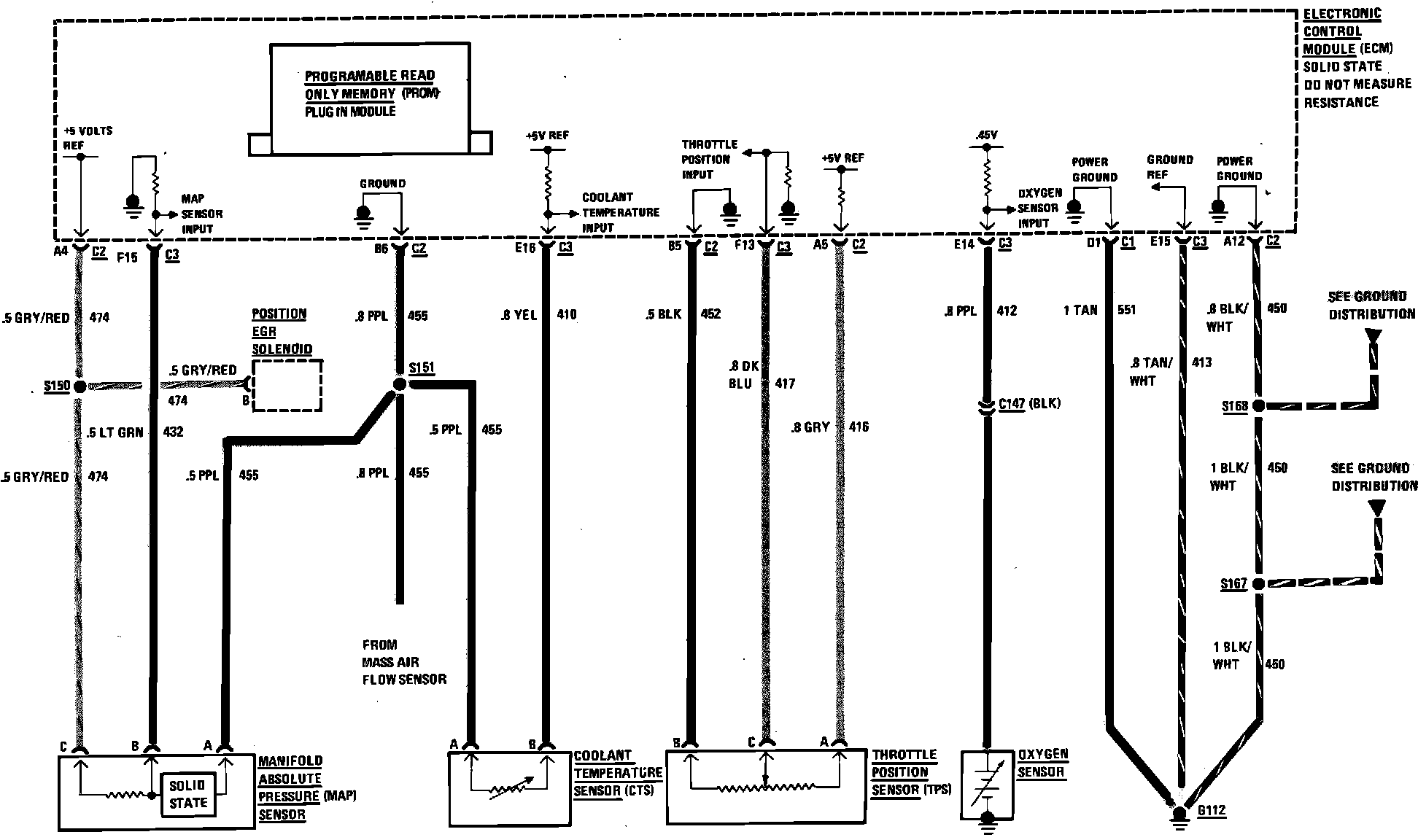

Multi-Port Fuel Injection Wiring Circuit (Engine Data Sensors, Torque Converter Clutch & Cold Start, Part 1 Of 2):

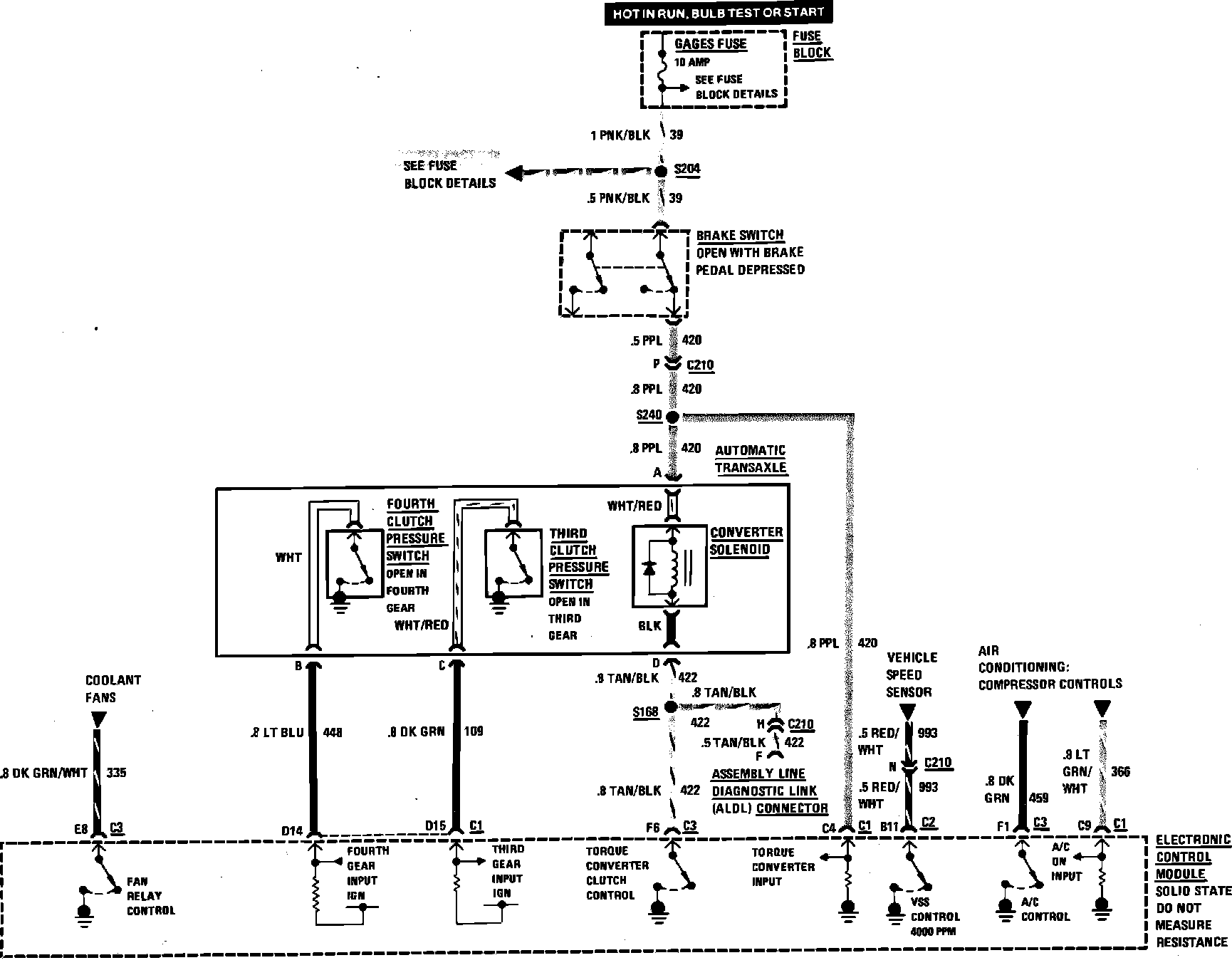

Multi-Port Fuel Injection Wiring Circuit (Engine Data Sensors, Torque Converter Clutch & Cold Start, Part 2 Of 2):
