Figure 2 Chevette & 1000 W/ 2BBL., W/A/T & A/C. (Vin C)

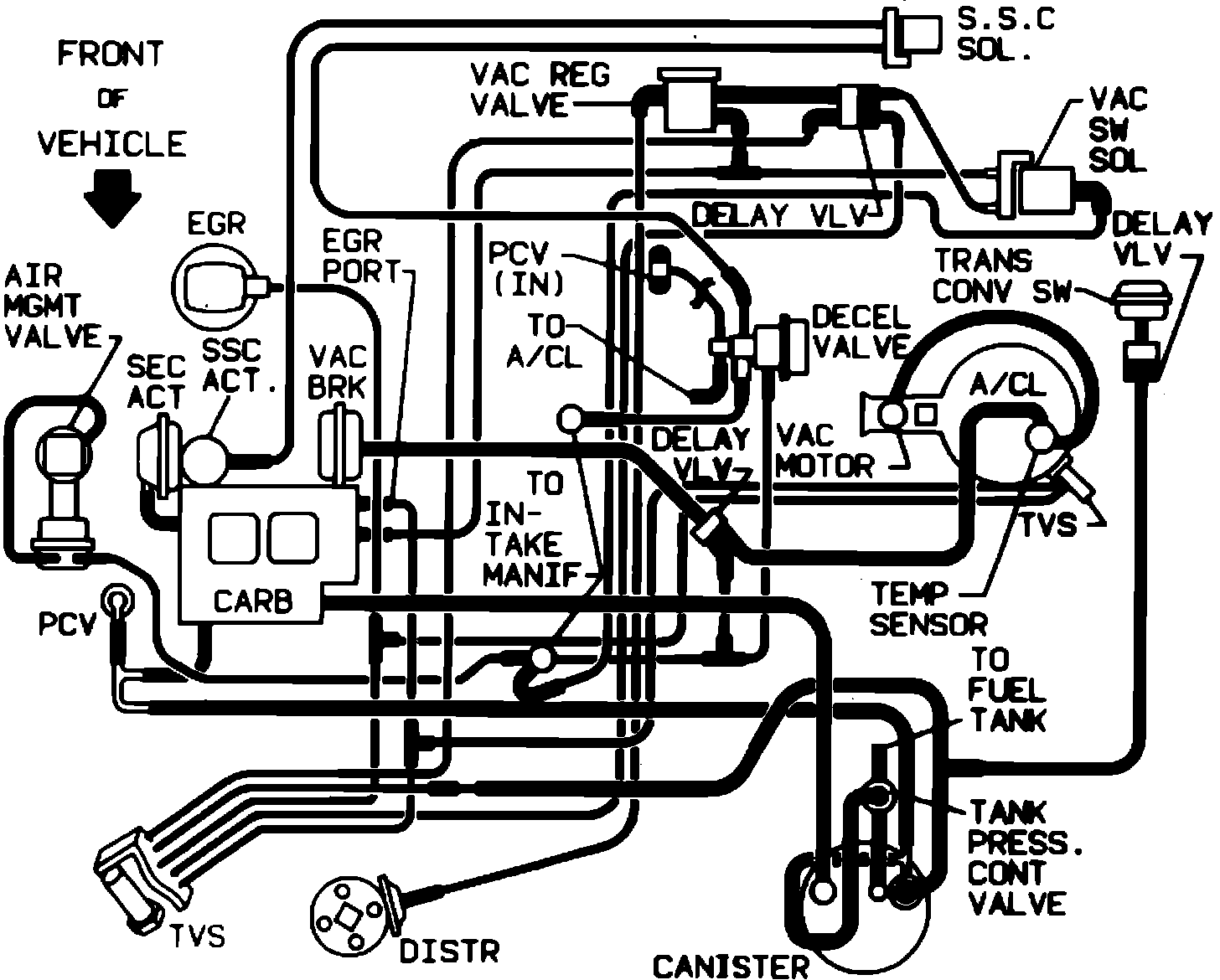

Fig. 2 Vacuum Hose Routing. 1987 Chevette & 1000 W/4-97 (1.6L) 2 Bbl., With A/T & A/C (VIN C):
