Engine Control Module
Engine Control Module

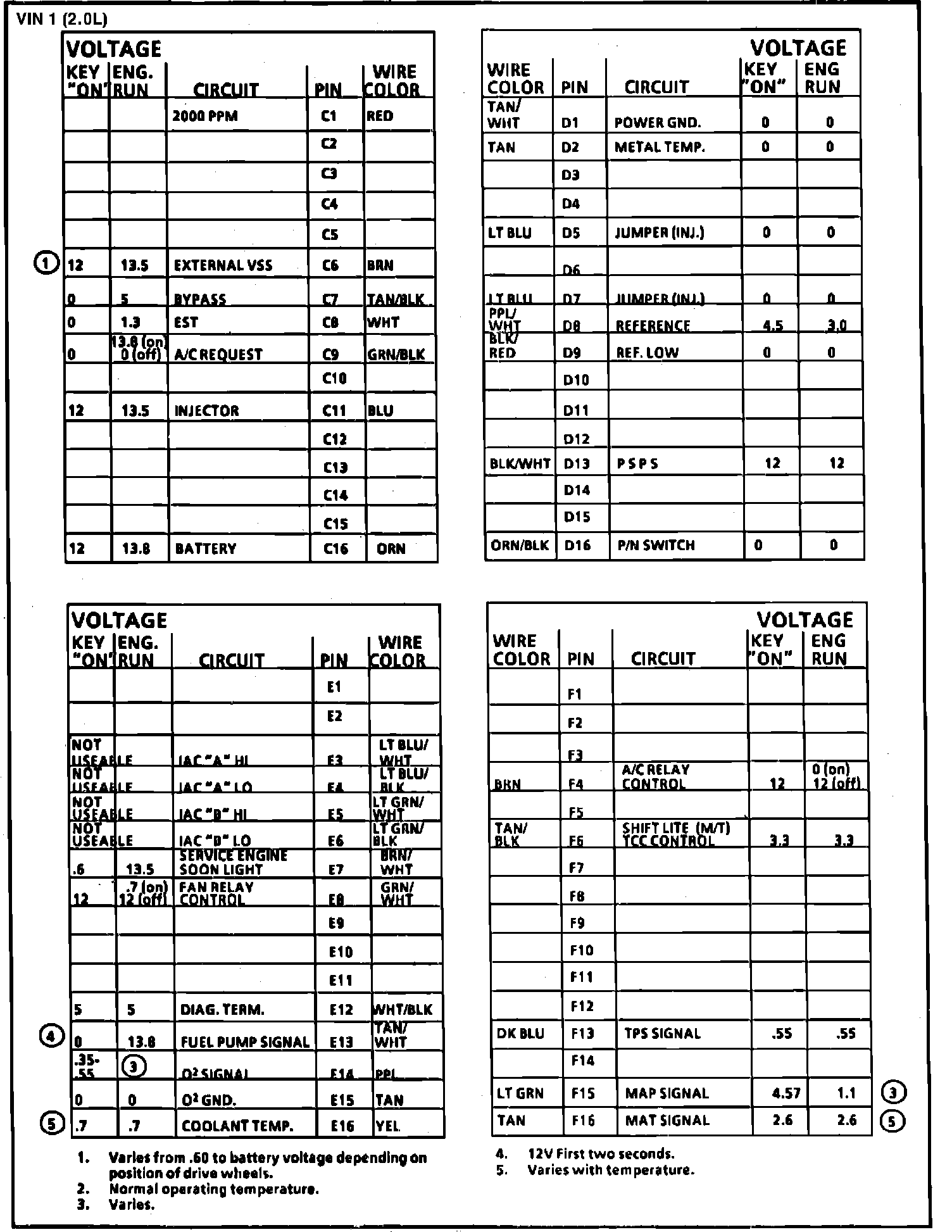

Fig. 010 ECM Connector Terminal I.D. & Volt. Specifications (1 of 2):
Fig. 011 ECM Connector Terminal I.D. & Volt. Specifications (2 of 2):
