Home >> Chevrolet >> 1987 >> Corsica L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Blower Motor >> With Air Conditioning

With Air Conditioning

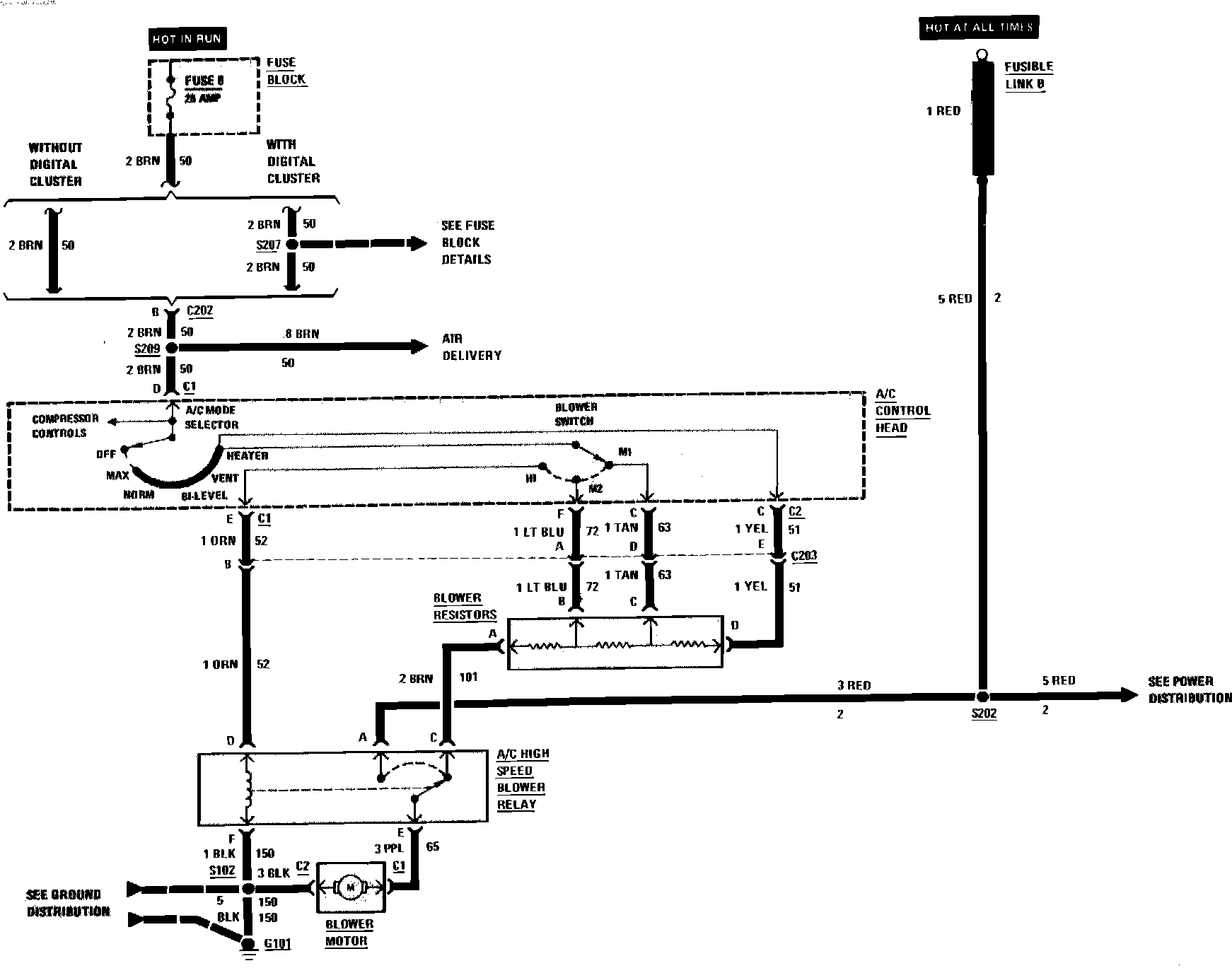

Air Conditioning Blower Wiring Circuit:



Air Conditioning Compressor Wiring Circuit:
