Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>

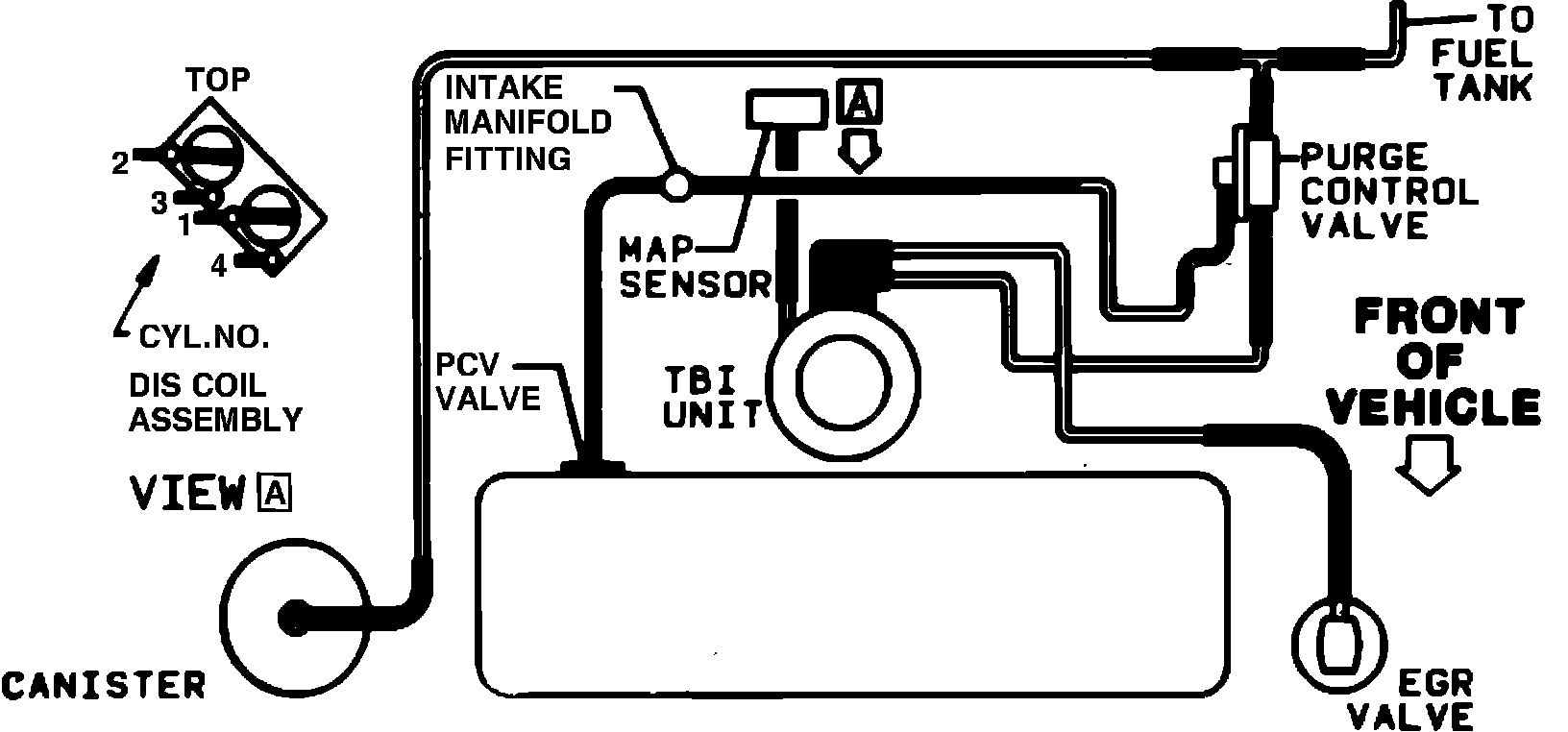

Figure 7 Beretta & Corsica W/4-121 (2.0L) OHV TBI. (Vin 1)
Figure 7 Beretta & Corsica W/4-121 (2.0L) OHV TBI. (Vin 1)
Fig. 7 Vacuum Hose Routing. 1987 Baretta & Corsica W/4-121 (2.0L) OHV TBI (VIN 1):
